Hioki PW3198-90 เครื่องวิเคราะห์ไฟฟ้า

SKU
PW3198-90

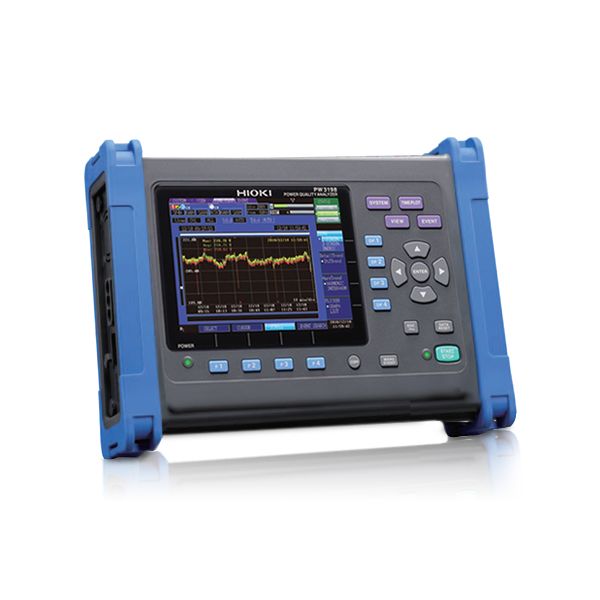

main product photo
สินค้าหมด

เครื่องบันทึกและวิเคราะห์ Power Analyzer พร้อมกันในเครื่องเดียว
3-Phase 4-Wire Power Quality Analyzer, IEC61000-4-30 Class A
บันทึกข้อมูลด้วย SD Card
ยี่ห้อ HIOKI, Japan

**ตัวเครื่องกับซอฟแวร์ (Set modelwith the PQA-HiView Pro 9624-50)**

ยกเลิกจำหน่าย สินค้าทดแทน PQ3198

Authorized_HIOKI

หมวดหมู่: HIOKI, เครื่องมือวัดยกเลิกจำหน่าย
Hioki

Hioki PW3198-90 เครื่องวิเคราะห์ไฟฟ้าPOWER QUALITY ANALYZER

Model: PW3198 ตัวเครื่องอย่างเดียว (Main unit only)
Model: PW3198-90 ตัวเครื่องกับซอฟแวร์
(Set model with the PQA-HiView Pro 9624-50)

3-Phase 4-Wire Power Quality Analyzer Compliant to IEC61000-4-30 Class A Standards with Dynamic 1300V Range,
Harmonic and Inter-harmonics Analysis Capabilities

Never Miss the Moment

  • Detect power supply problems and perform onsite troubleshooting
  • Do preventive maintenance to avert accidents by managing the power quality

CAT IV-600V Safety Standard

  • Meets the CAT IV safety rating required to check an incoming power line
  • Safe enough to measure up to 6,000Vpeak of transient overvoltage

Easy Setup Function with PRESETS

  • Just select the measurement course, wiring, and clamps
  • Automatic one-step setup based on measurement conditions Compliant with New International Standards
  • International power quality measurement standard IEC 61000-4-30 Edition 2 Class A
  • High precision with a basic voltage measurement accuracy of 0.1%

หน้าจอ 6.5-inch TFT color LCD (640 × 480 dots)
ฟังก์ชั่นบันทึกข้อมูลด้วย SD Card
Interface SD/SDHC card, RS-232C, LAN (HTTP server funtion), และ USB2.0
Power supply AC Adapter
ขนาดตัวเครื่อง 300 x 211 x 68mm (2600g)
ยี่ห้อ HIOKI, Japan

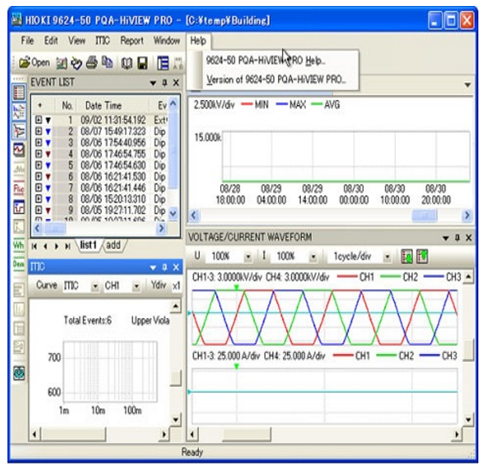

PQA-HiVIEW PRO PQA-HiVIEW PRO
Measurement line type Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire
or Three-phase 4-wire plus one extra input channel (must be
synchronized to reference channel during AC/DC measurement)
Voltage ranges Voltage measurement: 600.00 V rms
Transient measurement 6.0000 kV peak
Current ranges 500.00 mA to 5.0000 kA AC (depends on current sensor in use)
Basic accuracy Voltage: ±0.1% of nominal voltage
Current: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement items 1. Transient over voltage : 2 MHz sampling
2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz
3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle Current (1/2) RMS: half-cycle calculation
4. Voltage swell, Voltage dips, Voltage interruption
5. Inrush current
6. Voltage waveform comparison
7. Instantaneous flicker value: As per IEC61000-4-15
8. Frequency: Calculated as 10 or 12 cycles,40 to 70 Hz
9. 10-sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz
10. Voltage waveform peak, Current waveform peak
11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement
power factor, Voltage unbalance factor, Current unbalance factor (negative-phase, zero-phase)
12. High-order harmonic component (voltage/ current): 2 kHz to 80 kHz
13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders
14. Harmonic voltage-current phase angle: 1th to 50 th orders
15. Total harmonic distortion factor (voltage/ current)
16. Inter harmonic (voltage/ current): 0.5 Hz to 49.5 Hz
17. K Factor (multiplication factor)
18. IEC Flicker, Δ V10 Flicker
Record 55 weeks (with repeated recording set to [1 Week], 55 iterations)
35 days (with repeated recording set to [OFF])
Interfaces SD/SDHC card, RS-232C, LAN (HTTP server funtion), and USB2.0
Display 6.5-inch TFT color LCD (640 × 480 dots)
Power supply AC Adapter Z1002 (12 V DC, Rated power supply 100 V AC to 240 V AC, 50/60 Hz)
Battery Pack Z1003 (Ni-MH 7.2 V DC 4500 mAh)
Dimensions and mass 300 × 211 × 68 mm (excluding protrusions), 2.6 kg (including battery pack)
Accessories  Instruction manual × 1
Measurement guide × 1
Software PQA-HiView Pro × 1
Voltage Cord L1000 × 1 set (Red/ Yellow/ Blue/ Gray)
Each 1
Black × 4
Alligator clip × 8
Spiral tube × 20
Input Cable Labels × 1
AC Adapter Z1002 × 1
Strap × 1
USB cable (1 m 3.28 ft length) × 1
Battery Pack Z1003 × 1
SD memory card 2GB Z4001 × 1

Model

Name

 Specifications
Current measurement : For power or load current measurement (1 sensor necessary for single-phase measurements, and 2 or 3 sensors
                                                 required for 3-phase measurements)
CLAMP ON SENSOR 9694

HIOKI 9694

 CLAMP ON SENSOR

5A AC rated current, φ 15 mm
(0.59 in) core dia., 3 m (9.84 ft) length
 CLAMP ON SENSOR 9694 HIOKI 9660 CLAMP ON SENSOR

100A AC rated current, φ 15 mm
(0.59 in) core dia., 3 m (9.84 ft) length
 CLAMP ON SENSOR 9661 HIOKI 9661 CLAMP ON SENSOR

500A AC rated current, φ 46 mm
(1.81 in) core dia., 3 m (9.84 ft) length
 CLAMP ON SENSOR 9667 HIOKI CT9667 Series
HIOKI CT9667-01 (φ100mm)
HIOKI CT9667-02 (φ180mm)
HIOKI CT9667-03 (φ254mm)

FLEXIBLE CLAMP ON SENSOR

5000/500 A AC rated current, φ 254 mm
(10.0 in) core dia., Cable length: Between
sensor - box 2 m (6.56 ft), Output cable 1 m (3.28 ft)
 CLAMP ON SENSOR 9669 HIOKI 9669 CLAMP ON SENSOR

1000A AC rated current, φ 55 mm
(2.17 in) core dia., 3 m (9.84 ft) length
 CLAMP ON SENSOR 9695-02 HIOKI 9695-02 CLAMP ON SENSOR

50A AC rated current, φ 15 mm
(0.59 in) core dia., Requires the Connection cord 9219
 CLAMP ON SENSOR 9695-03 HIOKI 9695-03 CLAMP ON SENSOR

100A AC rated current, φ 15 mm
(0.59 in) core dia, Requires the Connection cord 9219
 CLAMP ON SENSOR 9219-1 HIOKI CORD 9219 CONNECTION

Connect with the 9695-02/ -03, Output BNC terminal
Leak current : For leak current measurement (not capable of power measurement)
 CLAMP ON LEAK SENSOR 9675 HIOKI CORD 9675 CLAMP ON LEAK SENSOR

10A AC rated current, φ 30 mm (1.18 in) core dia.,
3 m (9.84 ft) length
CLAMP ON LEAK SENSOR 9657-10 HIOKI CORD R 9657-10 CLAMP ON LEAK SENSOR

10A AC rated current, φ 40 mm (1.57 in) core dia.,
3 m (9.84 ft) length
Adapter : For clamp sensor
 CLAMP ON ADAPTER 9290-10 HIOKI ADAPTER 9290-10 CLAMP ON ADAPTER

CT for 1000A AC, secondary current 1/10 of primary
Current measurement
 CLAMP ON AC/DC SENSOR CT9691-90 HIOKI CT9691-90 CLAMP ON AC/DC SENSOR

SENSOR CT9691-90 DC to 10kHz (-3dB), 100A,
Output 0.1 V/f.s., Cord length 2 m (6.56 ft)
CLAMP ON AC/DC SENSOR CT9692-90 HIOKI CT9692-90 CLAMP ON AC/DC SENSOR

DC to 20kHz (-3dB), 200A,
Output 0.2 V/f.s., Cord length 2 m (6.56 ft)
CLAMP ON AC/DC SENSOR CT9693-90 HIOKI CT9693-90 CLAMP ON AC/DC SENSOR

DC to 15kHz (-3dB), 2000A,
Output 0.2 V/f.s., Cord length 2 m (6.56 ft)
SKUPW3198-90
Weight2600.000000
ขนาด300 x 211 x 68mm
ผู้ผลิตHioki
บันทึกข้อมูลได้
Resolution No
Measurement RangeVoltage measurement: 600.00 V rms / Transient measurement 6.0000 kV peak/ 500.00 mA to 5.0000 kA AC
ฟังก์ชั่นNo
Power SupplyAC Adapter Z1002 (12 V DC, Rated power supply 100 V AC to 240 V AC, 50/60 Hz) Battery Pack Z1003 (Ni-MH 7.2 V DC 4500 mAh)
ระดับการป้องกันNo
Sensor Output InterfaceNo
AccuracyVoltage: ±0.1% of nominal voltage / Current: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy / Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
คะแนนของคุณ

PDF Download PDF Download

Product's Video

Accessories Included

  • Instruction manual × 1
  • Software PQA-HiView Pro × 1
  • Measurement guide × 1
  • Voltage Cord L1000 × 1 set (Red/ Yellow/ Blue/ Gray)
  • Each 1
  • Black × 4
  • Alligator clip × 8
  • Spiral tube × 20
  • Input Cable Labels × 1
  • AC Adapter Z1002 × 1
  • Strap × 1
  • USB cable (1 m 3.28 ft length) × 1
  • Battery Pack Z1003 × 1
  • SD memory card 2GB Z4001 × 1
