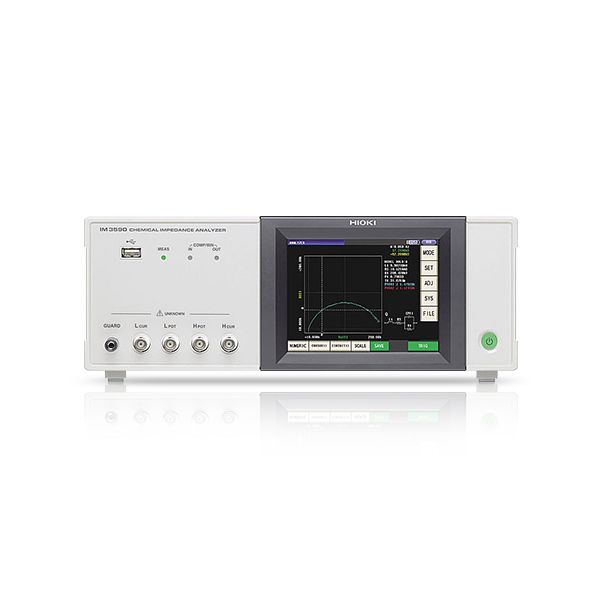

Hioki IM3590 Chemical Impedance Analyzer

SKU
IM3590
main product photo
฿0.00
Pre-Order Item
สินค้าหมด

CHEMICAL IMPEDANCE ANALYZER
ช่วงการวัด 100mΩ to 100MΩ, 10 ranges
Frequency 1 mHz to 200 kHz
ยี่ห้อ Hioki, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

Authorized_HIOKI

เพิ่มสินค้าเปรียบเทียบ
หมวดหมู่: HIOKI
Hioki

CHEMICAL IMPEDANCE ANALYZER IM3590

• Broad 1 mHz to 200 kHz signal source range supports measurements of ion behavior and solution resistance
• Continuous measuring and high-speed testing of LCR and sweep measurements with a single instrument
• Measure internal impedance of batteries with no load • Perform high-speed sweep measurements in as little as 2 ms
• Basic accuracy of ±0.05% is ideal for applications from component testing to R&D
• Measure LCR impedance for Cole-Cole plots and equivalent-circuit analyses of electro-chemical components and materials

หน้าจอ 5.7-inch TFT color
Interface EXT I/O (Handler), RS-232C, LAN, GP-IB และ USB
Power supply AC Adapter
ขนาดตัวเครื่อง 330 x 119 x 168mm (3100g)
ยี่ห้อ HIOKI, Japan

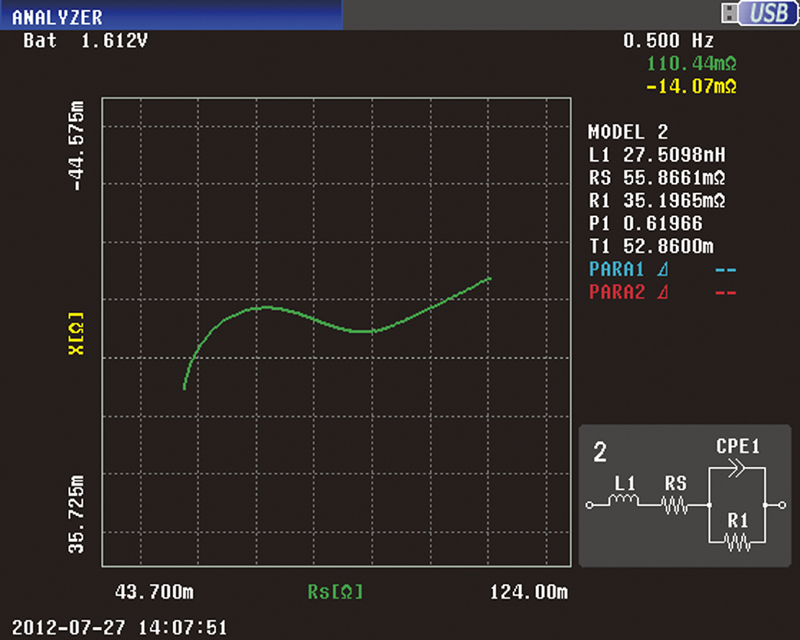

ตัวอย่างหน้าจอ  IM3590 : Cole-Cole plot generation, equivalent circuit analysis, and other impedance measurement capabilities













In addition to measuring electrochemical components and materials,
batteries, and electrical double-layer capacitors, the Hioki IM3590 can
generate Cole-Cole plots and perform equivalent circuit analysis.

Key applications:
Analyze the internal phenomena in batteries, for example charge transfer
resistivity at the electrode/electrolyte interface and the mass transfer process
in electrolytes



Specifications

Measurement Mode

LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
Measurement parameters

Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp,
D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Display range

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε :
±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999)
Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%)
T : -10.0°C to 99.9°C
σ, ε :±(0.00000f [unit] to 999.999G [unit]
Basic accuracy

Z: ±0.05% rdg. θ: ±0.03°
Measurement frequency

1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
Measurement signal level Normal mode:
V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Low impedance high accuracy mode:
V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
CC mode:10 μA to 100 mArms, 10 μArms steps
Output impedance Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω
Display

5.7-inch color TFT, display can be set to ON/OFF
Measurement time 2 ms (1 kHz, FAST, display OFF, representative value)
Functions

DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function
Interfaces

EXT I/O (Handler), USB communication (high-speed), USB memory
Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply

100 to 240 V AC, 50/60 Hz, 50 VA max.
Dimensions and mass

330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Accessories

Power cord ×1, Instruction manual ×1, CD-R (Communication instruction manual and sample software [Communications control, accuracy calculation, and screen capture functionality] ) ×1



อุปกรณ์เสริม (แยกจำหน่าย)

Model

Name

 Specifications

Probe and Test fixtures


IM9100

 SMD TEST FIXTURE

• Direct connection type
• SMDs with electrodes on the bottom
• DC to 8MHz
• Measurable sample sizes: 01005 to 0402 (EIA)
  9140-10 4-TERMINAL PROBE

Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω, 4-terminal
pair configuration, measurable
conductor diameter: ø0.3 to 5 mm
  9261-10 TEST FIXTURE

Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3 to 1.5mm
  9262 TEST FIXTURE

Direct connection type, DC to 8
MHz, measurable conductor
diameter: ø0.3 to 2mm
  9263 SMD TEST FIXTURE Direct connection type, DC to 8
MHz, Test sample dimensions:1
to 10mm
  9268-10 DC BIAS VOLTAGE UNIT Direct connection type, 40 Hz to 8
MHz, maximum applied voltage of
DC ±40 V
  9269-10 DC BIAS CURRENT UNIT  Direct connection type, 40 Hz to 2
MHz, maximum applied current of
DC 2 A
  9500-10 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to
200 kHz, impedance
characteristics of 50 Ω,
measurable conductor diameter:
φ0.3 to 2mm
  9677 SMD TEST FIXTURE Direct connection type, For
measuring SMDs with electrodes
on the side; DC to 120 MHz, test
sample dimensions: 3.5 mm ±0.5
mm (0.14 in ±0.02 in)
  9699 SMD TEST FIXTURE Direct connection type, For
measuring SMDs with electrodes
on the bottom; DC to 120 MHz
test sample dimensions: 1.0 mm
(0.04 in) to 4.0 mm (0.16 in) wide,
max. 1.5 mm (0.06 in) high
  IM9901 CONTACT TIPS To replace the tip on the L2001,
regular size, bundled with
the L2001
  IM9902 CONTACT TIPS To replace the tip on the L2001,
small size
  L2000 4-TERMINAL PROBE  Cable length 1 m (3.28 ft), DC to 8
MHz, impedance characteristics of
50 Ω, 4-terminal pair configuration,
measurable conductor diameter:
ø0.3  to 5mm
  L2001 PINCHER PROBE Cable length 73 cm (2.40 ft), DC to
8 MHz, impedance characteristics
of 50 Ω, 4-terminal pair
configuration, tip electrode
spacing: 0.3 (0.01 in) to 6 mm (0.24 in)
  IM9110 SMD TEST FIXTURE  • Direct connection two-terminal
  measurement type
• DC to 1 MHz
• Measurable sample sizes:
  008004 (EIA)

PC Communication
  9151-02  GP-IB CONNECTOR CABLE  2 m (6.56 ft) length
  Z3000 GP-IB INTERFACE
  Z3001 RS-232C INTERFACE
  Z3002 LAN INTERFACE

Temperature probe
  9478 SHEATH TYPE
TEMPERATURE PROBE 		 Pt100, Tip dia. φ2.3 mm (0.09 in),
Cord length 1 m (3.28 ft),
Waterproof construction


SKUIM3590
Weight3100.000000
ขนาด330 × 119 × 168mm
ผู้ผลิตHioki
คะแนนของคุณ
PDF Download Catalog    ดาวน์โหลดแคตตาล็อค Hioki

อุปกรณ์มาตรฐาน
ตัวเครื่อง ×1
Power cord ×1
