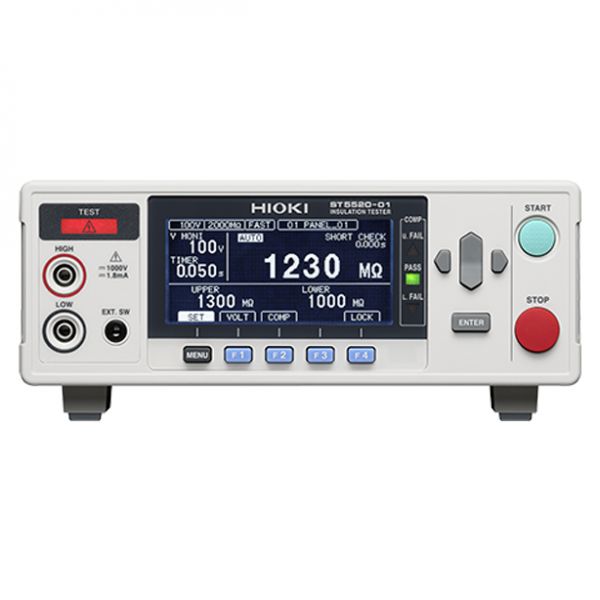

HIOKI ST5520 เครื่องทดสอบความเป็นฉนวน

SKU
ST5520
สินค้าหมด

เครื่องทดสอบความเป็นฉนวนและ Voltage แบบดิจิตอล
เหมาะสำหรับการวัดแบตเตอรี่ในสายการผลิต
วัดผลได้อย่างรวดเร็วเพียงแค่ 50ms
ตั้งค่าการทดสอบ Voltage ได้ตั้งแต่ 25 to 1000 V
ตัวเครื่อง Built-in External I/O output
HIOKI, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

HIOKI ST5520 เครื่องทดสอบความเป็นฉนวน

HIOKI ST5520 คือเครื่องทดสอบความเป็นฉนวนและ Voltage แบบดิจิตอล สำหรับการทดสอบอุปกรณ์อิเล็คทรอนิคส์และส่วนประกอบต่าง ๆ ให้อยู่ในมาตรฐานความปลอดภัย ST5520 นั้น เป็นเครื่องทดสอบความเป็นฉนวนที่เร็วที่สุดในวงการอุตสาหกรรม โดยจะส่งผลลัพธ์  pass/ fail ในเวลา 50ms และช่วงการวัด Voltage ตั้งแต่ 25 to 1000 V ที่ความละเอียด 1 V

Features

  • With External I/O output
  • Contact check function
  • 4-Wire Contact Check
  • Comparator Contact Check
  • Freely configurable test voltage
  • Short-circuit check function
  • Comparator Function
  • Switched Probe
  • Panel Save/ Load Function
Rated measurement voltage Resistance range Max. display Resolution Accuracy range Accuracy FAST/SLOW
25 V ≤ V < 100 V 2 MΩ 4.000 MΩ 0.001 MΩ 0.000 to 2.000 MΩ ±2% rdg. ±5 dgt.
20 MΩ 40.00 MΩ 0.01 MΩ 1.90 to 20.00 MΩ
200 MΩ 400.0 MΩ 0.1 MΩ 19.0 to 200.0 MΩ ±5% rdg.
100 V ≤ V < 500 V 2 MΩ 4.000 MΩ 0.001 MΩ 0.000 to 2.000 MΩ ±2% rdg. ±5 dgt.
20 MΩ 40.00 MΩ 0.01 MΩ 1.90 to 20.00 MΩ
200 MΩ 400.0 MΩ 0.1 MΩ 19.0 to 200.0 MΩ ±5% rdg.
2000 MΩ 4000 MΩ 1 MΩ* 19.0 to 2000 MΩ
500 V ≤ V ≤ 1000 V 2 MΩ 4.000 MΩ 0.001 MΩ 0.000 to 2.000 MΩ ±2% rdg. ±5 dgt.
20 MΩ 40.00 MΩ 0.01 MΩ 1.90 to 20.00 MΩ
200 MΩ 400.0 MΩ 0.1 MΩ 19.0 to 200.0 MΩ
4000 MΩ 9990 MΩ 1 MΩ* 19.0 to 4000 MΩ ±5% rdg.
4010 to 9990 MΩ ±25% rdg.
Measurement items Insulation resistance (DC voltage application method)
Output voltage 25 V to 1000 V (user-configurable), 1 V resolution
Sampling FAST: 30 ms/time, SLOW: 500 ms/time (switch)
Memory function Saved items: reated measurement voltage , comparator upper limit/lower limit values, test mode, beep sound to distinguish the result, test time, response time, resistance range, measurement speed
Memory capacity: up to 10 items (can be saved/loaded)
Test modes Continuous mode, PASS STOP mode, FAIL STOP mode, force quit assessment mode (switchable)
Check function Contact check function (ON/OFF)
Short-circuit check function (ON/OFF)
Operating temperature/ Humidity range 0 to 40°C, 80% rh or lower (non-condensing)
Storage temperature/ Humidity range -10 to 50°C, 80% rh or lower (non-condensing)
Accuracy Temperature/ Humidity range 23°C ±5°C, 80% rh or lower (non-condensing)
Usage location Indoor use, pollution degree 2, up to a height of 2000 m
Rated power supply voltage 100 V AC to 240 V ±10%
Rated power supply frequency 50/60 Hz
Max. rated power 25 VA
Withstand voltage 1.62 kV AC (sensed current 10 mA) 1 min. Between power supply LN (together) and protective grounding terminal
Excessive input protection 1100 V DC (positive polarity only)
Compliant Standards Safety EN61010 EMC EN61326 Class A EN61000-3-2, EN61000-3-3
Dimensions/ Weight 215 x 80 x 166mm (1.1kg)
SKUST5520
Weight600.000000
ขนาด159 x 177 x 53
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Resolution 1 V
Measurement Range

Testing voltage/ measurement ranges (Auto / Manual)

  • 25 V ≤ V < 100 V (2.000/20.00/200.0 MΩ)
  • 100 V ≤ V < 500 V (2.000/20.00/200.0/2000 MΩ)
  • 500 V ≤ V ≤ 1000 V (2.000/20.00/200.0/4000/9990 MΩ)
ฟังก์ชั่น
  • With External I/O output
  • Contact check function
  • 4-Wire Contact Check
  • Comparator Contact Check
  • Freely configurable test voltage
  • Short-circuit check function
  • Comparator Function
  • Switched Probe
  • Panel Save/ Load Function
Power SupplyBattery AA x 4
ระดับการป้องกันNo
Sensor Output InterfaceRS-232C, External I/O output
Accuracy±2 % rdg. ±5 dgt.
