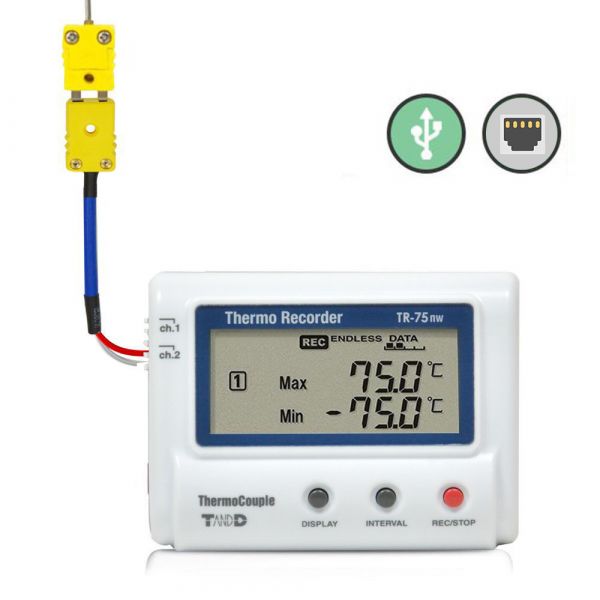

T&D TR-75nw เครื่องบันทึกอุณหภูมิ 2 Ch (Temperature Data Logger) | Wired LAN Connection

• Type K: -199 to 1370 °C
• Type J : -199 to 1200 °C
• Type T : -199 to 400 °C
• Type E: -199 to 1000 °C
• Type S: -50 to 1760 °C
• Type R: -50 to 1760 °C

• Type K, J, T, E: 0.1°C
• Type S, R: Approx. 0.2°C

Thermocouple Measurement (Sensor inaccuracies not included)

• Type K, J, T, E :
  ± (0.5 + 0.003 × t) °C at -100°C or above
• Type S, R :
  ± (1.5 + 0.003 × t) °C at 100°C or above

t = absolute value of measurement in °C

Cold Junction Compensation

• ±0.5°C at 10 to 40 °C
• ±0.8°C

other temperatures within the operating environment of the logger

• Endless (Overwrite oldest data when capacity is full)
• One Time (Stop recording when capacity is full)

• Measurements (fixed or alternating display)
• Recording Status
• Recording Mode
• Battery Warning Mark
• etc.

Select from 15 choices:

• OFF (No auto-upload)
• 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs

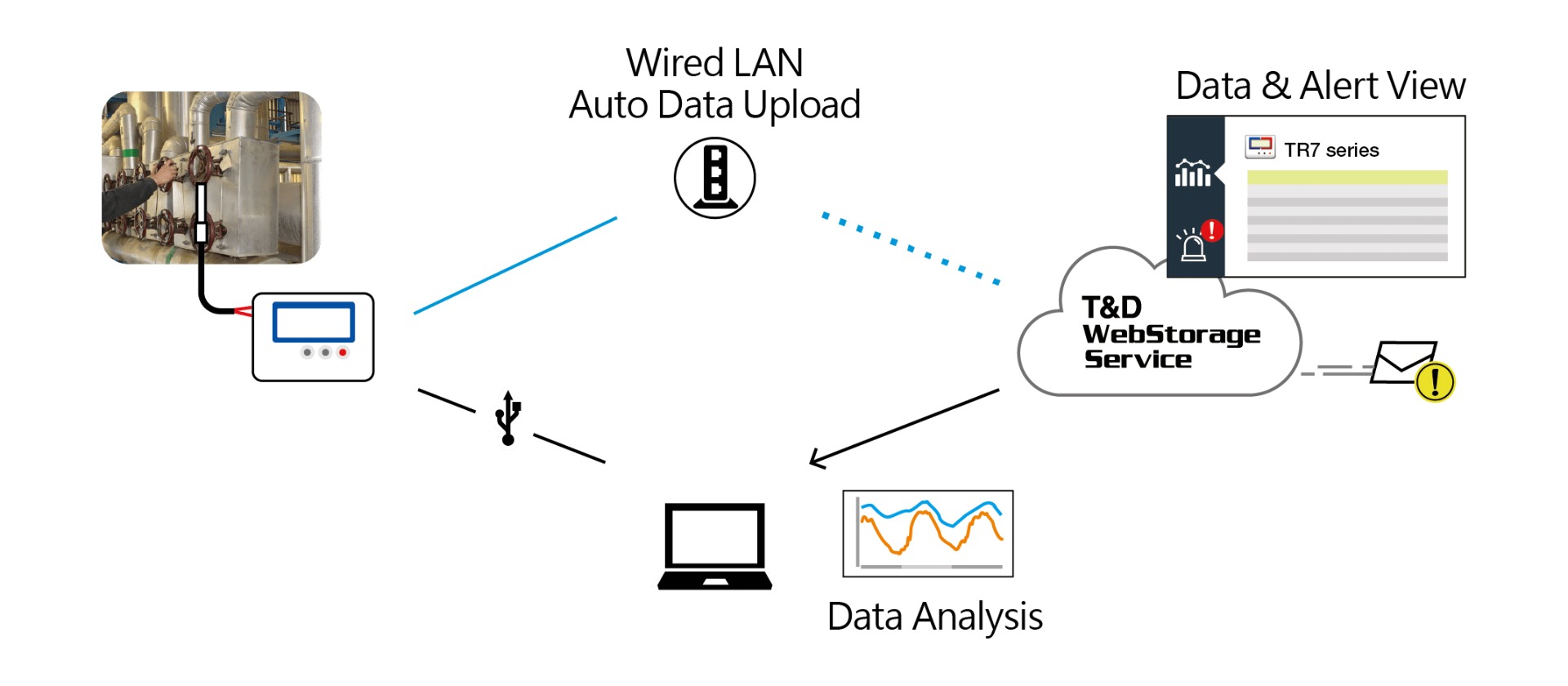

• Wired LAN Communication
  100BASE-TX/10BASE-T (RJ45 Connector)
  Protocol : HTTP (HTTP client. Proxy supported) , DHCP, DNS
• USB Communication
  USB 2.0 (Mini-B connector)

• Battery: AA Alkaline LR6 x 2, AA Ni-MH x 2
• External: USB Bus 5V 200mA
• AC Adaptor AD-05A2 or AD-05C2
• PoE IEEE 802.3af

• Approx. 10 days to 1 year (depends on Auto-upload  interval)

Battery life in the table above is for two AA Alkaline type batteries, and varies depending upon multiple factors including frequency of communication, LAN environment, ambient
temperature, recording interval, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life

PC Software (Windows)

• TR7 for Windows,
• T&D Graph, T&D Data Server

Mobile Application (iOS, Android)

• T&D Thermo

Free software download and information on OS compatibility is available on the Software page of our website at https://tandd.com/software/ .
The specifications listed above are subject to change without notice.
