U_RD CTT-CLS-CV series Current converter integrated clamp type sensor and converter (50A to 500A)
CTT-CLS-CV ตัวแปลงสัญญาณ Current ที่ผสมผสานรูปแบบมาในลักษณะของแคลมป์เซนเซอร์และตัวแปลงสัญญาณในตัวเดียวกัน ด้วยขนาดกะทัดรัดทำให้ง่ายต่อการติดตั้งได้ในจุดที่พื้นที่จำกัด เหมาะสำหรับการใช้งานทั่วไป เช่น วัดค่าหม้อแปลงไฟฟ้าในศูนย์ค้า, การวัดค่าเฉลี่ยของ AC current และ DC Voltage
CTT-CLS-CV นั้นมีช่วงการวัดที่กว้างให้เลือกถึง 4 รูปแบบ ตั้งแต่ 0 ถึง 50A จนถึง 0 ถึง 500A (ช่วงการวัดขึ้นอยู่กับโมเดลแต่ละรุ่น)

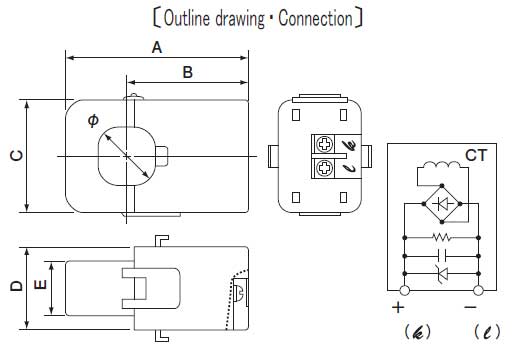

Model | CTT-10-CLS-CV5 | CTT-10-CLS-CV10 | CTT-10-CLS-CV25 | CTT-10-CLS-CV50 | CTT-16-CLS-CV100 | CTT-24-CLS-CV250 | CTT-36-CLS-CV500 |
A | 50 | 55 | 74.5 | 91 | |||
B | 37 | 40.5 | 49.5 | 61 | |||
C | 23 | 29.5 | 45 | 57 | |||
D | 26 | 31 | 34 | 40.5 | |||
E | 14.5 | 19 | 22 | 22 | |||
Ø | 10 | 16 | 24 | 36 | |||
Weight | 45 g | 75 g | 200 g | 290 g |
Model | CTT-10-CLS-CV5 | CTT-10-CLS-CV10 | CTT-10-CLS-CV25 | CTT-10-CLS-CV50 | CTT-16-CLS-CV100 | CTT-24-CLS-CV250 | CTT-36-CLS-CV500 |
Rating current (50/60Hz) | 5 A | 10 A | 25 A | 50 A | 100 A | 250 A | 500 A |
Output voltage | 0 to 5 VDC/0 to rating current, build in 7.5VDC limitter (Recommended load resistor ≥ 10MΩ) | ||||||
Maximum current | 100% (continuous), 150% (1 min) | ||||||
Linearity | ±2% FS dynamic range 1:100 (50/60Hz sine wave) | ||||||
Output impedance | 7kΩ | 8.5kΩ | 6.8kΩ | 6.2kΩ | 5.8kΩ | 5.8kΩ | 5.8kΩ |
Response time | 300ms | ||||||
Output ripple | Within 5% of output | ||||||
Withstand voltage | AC 2000V (50/60Hz), 1 min (Core-output terminal in a lump) | ||||||
Insulation resistance | DC 500V, ≥ 100MΩ (Core-output terminal in a lump) | ||||||
Operating temperature | -20 to 50°C, ≤ 80%RH, No condensation, for indoor assembly, free direction for setting | ||||||
Storage temperature | -30 to 90°C, ≤ 85%RH, No condensation | ||||||
Fitting repeatability | ≈100 times | ||||||
Output terminal | 2XM3 screw terminal with terminal cover | ||||||
Screw torque | 0.3N•m |
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
รหัสสินค้า | CTT-CLS-CV series |
---|---|
ผู้ผลิต | U_RD |
