Eclatorq WEC Series ประแจวัดแรงบิดดิจิตอล หัวแบบ Interchangeable Head

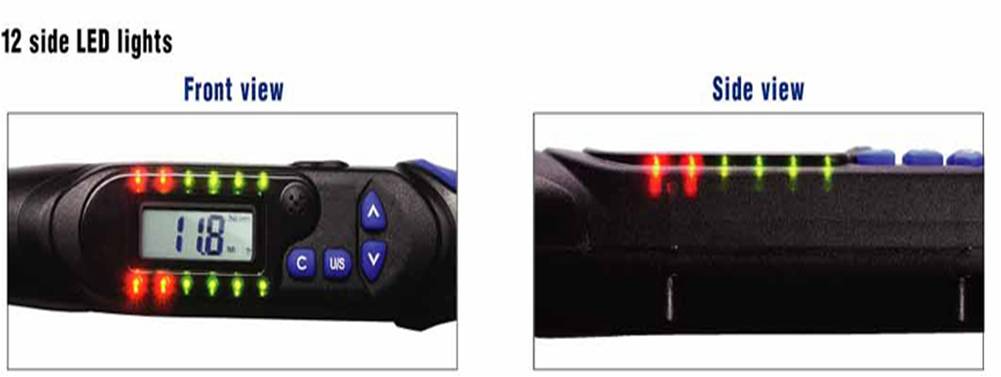

ประแจวัดแรงบิดดิจิตอล หัวแบบ Interchangeable Head (เปลี่ยนหัวได้) พร้อม 12 LED Lights (4 Red + 8 Green) มองเห็นจากด้านบนและด้านข้าง พร้อมปุ่มกด 4 ปุ่ม ใช้งานได้สะดวกFeatures

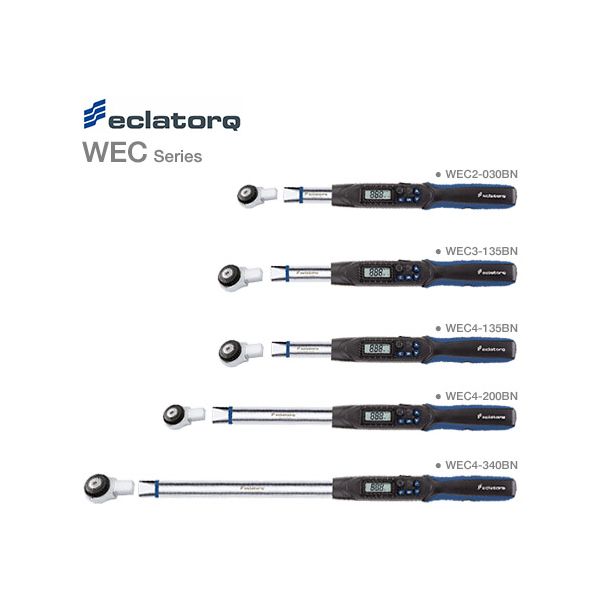

WEC Series Digital Torque Wrench
| Model | WEC2-030BN | WEC3-135BN | WEC4-135BN | WEC4-200BN | WEC4-340BN | WEC6-500BN | WEC6-850BN |
| Torque Range | 1.5 to 30 N-m 1.11 to 22.12 ft-lb 13.3 to 265.5 in-lb 15.3 to 306.1 kg-cm |
6.8 to 135 N-m 5 to 99.5 ft-lb 60 to 1195 in-lb 69 to 1378 kg-cm |
6.8 to 135 N-m 5 to 99.5 ft-lb 60 to 1195 in-lb 69 to 1378 kg-cm |
10 to 200 N-m 7.4 to 147.5 ft-lb 88 to 1770 in-lb 102 to 2041 kg-cm |
17 to 340 N-m 12.5 to 250.7 ft-lb 150 to 3009 in-lb 173 to 3469 kg-cm |
25 to 500 N-m 221 to 4424 in-lb 18.4 to 368.7 ft-lb 255 to 5120 kg-cm |
42.5 to 850 N-m 376 to 7521 in-lb 31.3 to 626.8 ft-lb 434 to 8674 kg-cm |
| Accuracy | CW: ±2% | CW: ±2% | CW: ±2% | CW: ±2% | CW: ±2% | CW: ±2.5% | CW: ±2.5% |
| CWW: ±3% | CWW: ±3% | CWW: ±3% | CWW: ±3% | CWW: ±3% | CWW: ±3.5% | CWW: ±3.5% | |
| Square Drive | 1/4" | 3/8" | 1/2" | 1/2" | 1/2" | 3/4" | 3/4" |
| Resolution | 0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm | 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm | 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm | 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm | 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm | 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm | 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm |
| Operation mode | Peak hold / Track | Peak hold / Track | Peak hold / Track | Peak hold / Track | Peak hold / Track | Peak hold / Track | Peak hold / Track |
| Size of End Fitting (mm) | 9 x 12 | 9 x 12 | 9 x 12 | 14 x 18 | 14 x 18 | 14 x 18 | 14 x 18 |
| Gear teeth | 52 | 52 | 52 | 52 | 52 | 48 | 48 |
| Power requirement | Battery AA x 2 | Battery AA x 2 | Battery AA x 2 | Battery AA x 2 | Battery AA x 2 | Battery AA x 2 | Battery AA x 2 |
| Dimension / Weight | 390 mm / 790 g | 410 mm / 970 g | 410 mm / 980 g | 545 mm / 1370 g | 640 mm / 1520 g | 950 mm / 2950 g | 1220 mm / 4260 g |
9 x 12 mm. Additional Head Available
| Open End Insert (9 x 12) Series | Box End Insert (9 x 12) Series | Flare Nut Insert (9 x 12) Series | ||||||
 |
 |
 |
||||||
| Model | No. | Size (mm) | Model | No. | Size (mm) | Model | No. | Size (mm) |
| EQ-31-O-3072 | 310702C1 | 7 | EQ-31-B-3072 | 310702C2 | 7 | EQ-31-F-3102 | 311002C3 | 10 |
| EQ-31-O-3082 | 310802C1 | 8 | EQ-31-B-3082 | 310802C2 | 8 | EQ-31-F-3112 | 311102C3 | 11 |
| EQ-31-O-3092 | 310902C1 | 9 | EQ-31-B-3102 | 311002C2 | 10 | EQ-31-F-3122 | 311202C3 | 12 |
| EQ-31-O-3102 | 311002C1 | 10 | EQ-31-B-3112 | 311102C2 | 11 | EQ-31-F-3132 | 311302C3 | 13 |
| EQ-31-O-3112 | 311102C1 | 11 | EQ-31-B-3122 | 311202C2 | 12 | EQ-31-F-3142 | 311402C3 | 14 |
| EQ-31-O-3122 | 311202C1 | 12 | EQ-31-B-3132 | 311302C2 | 13 | EQ-31-F-3162 | 311602C3 | 16 |
| EQ-31-O-3132 | 311302C1 | 13 | EQ-31-B-3142 | 311402C2 | 14 | EQ-31-F-3172 | 311702C3 | 17 |
| EQ-31-O-3142 | 311402C1 | 14 | EQ-31-B-3152 | 311502C2 | 15 | EQ-31-F-3182 | 311802C3 | 18 |
| EQ-31-O-3152 | 311502C1 | 15 | EQ-31-B-3162 | 311602C2 | 16 | EQ-31-F-3192 | 311902C3 | 19 |
| EQ-31-O-3162 | 311602C1 | 16 | EQ-31-B-3172 | 311702C2 | 17 | EQ-31-F-3212 | 312102C3 | 21 |
| EQ-31-O-3172 | 311702C1 | 17 | EQ-31-B-3182 | 311802C2 | 18 | EQ-31-F-3222 | 312202C3 | 22 |
| EQ-31-O-3182 | 311802C1 | 18 | EQ-31-B-3192 | 311902C2 | 19 | |||
| EQ-31-O-3192 | 311902C1 | 19 | EQ-31-B-3212 | 312102C2 | 21 | |||
| EQ-31-B-3222 | 312202C2 | 22 | ||||||
14 x 18 mm. Additional Head Available
| Open End Insert (14 x 18) Series | |||||||
|
Model | EQ-31-O-4132 | EQ-31-O-4142 | EQ-31-O-4152 | EQ-31-O-4162 | EQ-31-O-4172 | EQ-31-O-4182 |
| No. | 311302C4 | 311402C4 | 311502C4 | 311602C4 | 311702C4 | 311802C4 | |
| Size (mm) | 13 | 14 | 15 | 16 | 17 | 18 | |
| Model | EQ-31-O-4192 | EQ-31-O-4212 | EQ-31-O-4222 | EQ-31-O-4242 | EQ-31-O-4272 | EQ-31-O-4302 | |
| No. | 311902C4 | 312102C4 | 312202C4 | 312402C4 | 312702C4 | 313002C4 | |
| Size (mm) | 19 | 21 | 22 | 24 | 27 | 30 | |
| Model | EQ-31-O-4322 | EQ-31-O-4342 | EQ-31-O-4362 | EQ-31O-4382 | EQ-31-O-4412 | ||
| No. | 313202C4 | 313402C4 | 313602C4 | 313802C4 | 314102C4 | ||
| Size (mm) | 32 | 34 | 36 | 38 | 41 | ||
| Box End Insert (14 x 18) Series | |||||||
|
Model | EQ-31-B-4132 | EQ-31-B-4142 | EQ-31-B-4152 | EQ-31-B-4162 | EQ-31-B-4172 | EQ-31-B-4182 |
| No. | 311302C5 | 311402C5 | 311502C5 | 311602C5 | 311702C5 | 311802C5 | |
| Size (mm) | 13 | 14 | 15 | 16 | 17 | 18 | |
| Model | EQ-31-B-4192 | EQ-31-B-4212 | EQ-31-B-4222 | EQ-31-B-4242 | EQ-31-B-4272 | EQ-31-B-4302 | |
| No. | 311902C5 | 312102C5 | 312202C5 | 312402C5 | 312702C5 | 313002C5 | |
| Size (mm) | 19 | 21 | 22 | 24 | 27 | 30 | |
| Model | EQ-31-B-4322 | EQ-31-B-4342 | EQ-31-B-4362 | EQ-31-B-4412 | |||
| No. | 313202C5 | 313402C5 | 313602C5 | 314102C5 | |||
| Size (mm) | 32 | 34 | 36 | 41 | |||
9 x 12 | 14 x 18 mm. Additional Head Available
 |
Round Head Ratchet Insert | |||||
| Model | EQ-3012113 | EQ-3013113 | EQ-3014116 | EQ-3014117 | EQ-3016112 | |
| No. | 3012113 | 3013113 | 3014116 | 3014117 | 3016112 | |
| Square Drive | 1/4" | 3/8" | 1/2" | 1/2" | 3/4" | |
| Gear Teeth | 52 | 52 | 52 | 52 | 52 | |
| Size of End Fitting (mm) | 9 x 12 | 9 x 12 | 9 x 12 | 14 x 18 | 14 x 18 | |
 |
L-Lock-R Ratchet Insert | |||||
| Model | EQ-35205 | EQ-35305 | EQ-35405 | EQ-35407 | EQ-35607 | |
| No. | 35205 | 35305 | 35405 | 35407 | 35607 | |
| Square Drive | 1/4" | 3/8" | 1/2" | 1/2" | 3/4" | |
| Gear Teeth | 48 | 52 | 52 | 52 | 52 | |
| Size of End Fitting (mm) | 9 x 12 | 9 x 12 | 9 x 12 | 14 x 18 | 14 x 18 | |
 |
Adjustable Spanner Insert | |||||
| Model | EQ-3010007 | EQ-3010008 | EQ-3010009 | EQ-3010010 | ||
| No. | 3010007 | 3010008 | 3010009 | 3010010 | ||
| Nom. Size | 8" | 10" | 10" | 12" | ||
| Max. Open (mm) | 27 | 30 | 30 | 41 | ||
| Size of End Fitting (mm) | 9 x 12 | 9 x 12 | 14 x 18 | 14 x 18 | ||
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
| รหัสสินค้า | WEC Series |
|---|---|
| Weight | N/A |
| ผู้ผลิต | Eclatorq |
| Measurement Range | ไม่่ |
| ฟังก์ชั่น | ไม่่ |
| Sensor Output Interface | ไม่่ |
| Power Supply | Battery AA x 2 |
| Resolution | 0.01N-m / 0.1N-m |
| Size of End Fitting | 9x12 |
| Square Drive | 1/2", 1/4", 3/8" |
| Type of Torque Wrench | Interchangeable Head |
| ระดับการป้องกัน | ไม่่ |
| บันทึกข้อมูล | ไม่่ |
| Accuracy | ±2% (CW)/ ±3% (CCW) |
