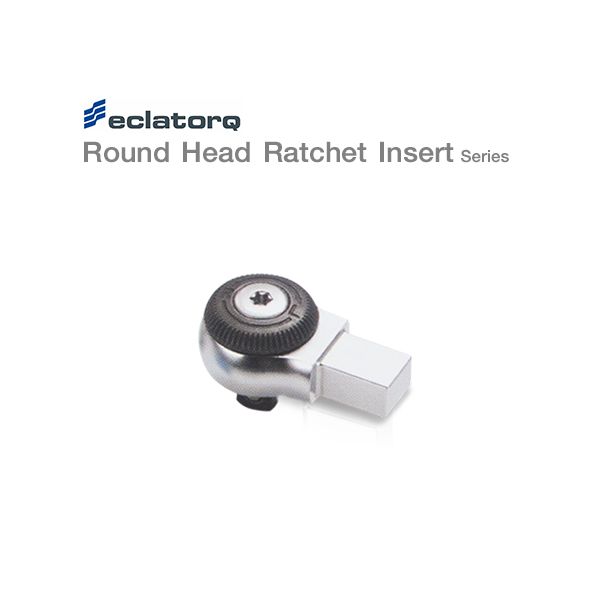

Eclatorq Round Head Ratchet Insert Series หัวเปลี่ยนประแจวัดแรงบิด

SKU
Round Head Ratchet Insert Series

From ฿700.00

To ฿4,500.00

มีสินค้า

หัวเปลี่ยนประแจวัดแรงบิด
Size of end Fitting (9 X12 / 14X18)
ยี่ห้อ Eclatorq

Price as configured ฿700.00

Eclatorq Round Head Ratchet Insert Series หัวเปลี่ยนประแจวัดแรงบิด

Model No. Square Drive Gear Teeth Size of End Fitting (mm)
EQ-3012113 3012113 1/4" 52 9 x 12
EQ-3013113 3013113 3/8" 52 9 x 12
EQ-3014116 3014116 1/2" 52 9 x 12
EQ-3014117 3014117 1/2" 52 14 x 18
EQ-3016112 3016112 3/4" 52 14 x 18

ประแจที่สามารถใช้งานร่วมกับหัวเปลี่ยนขนาด 9 x 12 mm. ได้

Model
WSC2-030CN WSC3-030CN WSC3-060CN WSC3-085CN WEC2-030BN WEC3-135BN WEC4-135BN
Torque Range 1.5 to 30 N-m
1.11 to 22.12 ft-lb
13.3 to 265.5 in-lb
15.3 to 306.1 kg-cm
1.5 to 30 N-m
1.11 to 22.12 ft-lb
13.3 to 265.5 in-lb
15.3 to 306.1 kg-cm
3 to 60 N-m
2.21 to 44.24 ft-lb
26.5 to 530.9 in-lb
30.6 to 612.2 kg-cm
4.2 to 85 N-m
3.1 to 62.7 ft-lb
37 to 752 in-lb
43 to 867 kg-cm
1.5 to 30 N-m
1.11 to 22.12 ft-lb
13.3 to 265.5 in-lb
15.3 to 306.1 kg-cm
6.8 to 135 N-m
5 to 99.5 ft-lb
60 to 1195 in-lb
69 to 1378 kg-cm
6.8 to 135 N-m
5 to 99.5 ft-lb
60 to 1195 in-lb
69 to 1378 kg-cm
Accuracy CW: ±3% CW: ±3% CW: ±3% CW: ±3% CW: ±2% CW: ±2% CW: ±2%
CCW: ±4% CCW: ±4% CCW: ±4% CCW: ±4% CCW: ±3% CCW: ±3% CCW: ±3%
Square Drive 1/4" 3/8" 3/8" 3/8" 1/4" 3/8" 1/2"
Resolution 0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm 0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm 0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm 0.01 N-m, 0.01 ft-lb, 0.1 in-lb, 0.1 kg-cm 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm
Gear Teeth 52
Size of End Fitting 9 x 12
Power requirement Battery AAA x 2
Dimension 220 mm 225 mm 225 mm 268 mm 390 mm 410 mm 410 mm
Weight 420 g 490 g 500 g 580 g 790 g 970 g 980 g

ประแจที่สามารถใช้งานร่วมกับหัวเปลี่ยนขนาด 14 x 18 mm. ได้

Model
WEC4-200BN WEC4-340BN WEC6-500BN WEC6-850BN
Torque Range 10 to 200 N-m
7.4 to 147.5 ft-lb
88 to 1770 in-lb
102 to 2041 kg-cm
17 to 340 N-m
12.5 to 250.7 ft-lb
150 to 3009 in-lb
173 to 3469 kg-cm
25 to 500 N-m
18.4 to 368.7 ft-lb
221 to 4424 in-lb
255 to 5102 kg-cm
42.5 to 850 N-m
31.3 to 626.8 ft-lb
376 to 7521 in-lb
434 to 8674 kg-cm
Accuracy CW: ±2% CW: ±2% CW: ±2.5% CW: ±2.5%
CCW: ±3% CCW: ±3% CCW: ±3.5% CCW: ±3.5%
Square Drive 1/2" 1/2" 3/4" 3/4"
Resolution 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm 0.1 N-m, 0.1 ft-lb, 1 in-lb, 1 kg-cm
Gear Teeth 52 52 48 48
Size of End Fitting 14 x 18 mm.
Power requirement Battery AA x 2
Dimension 545 mm 640 mm 950 mm 1220 mm
Weight 1370 g 1520 g 2950 g 4260 g
