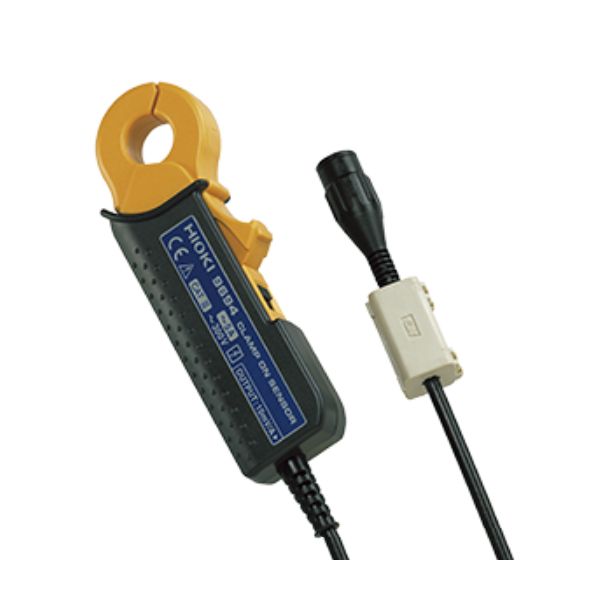

Hioki 9694 Clamp on Sensor

SKU

HIOKI-9694

สินค้าหมด

ช่วงการวัด 5A AC
Max. measurement current: continuous 50 A
Output rate 10mV AC/A
Coductor size: ø15mm
ยี่ห้อ HIOKI, Japan

9694 คือแคลมป์เซนเซอร์ที่วัดไฟฟ้าได้ถึง 5 A AC ด้วย voltage output หรับการวัด load current

Specifications

Rated measurement current	5 A AC
Max. Measurement current	Continuous 50 A (45 to 66 Hz)
Output rate	10 mV AC/A
Amplitude accuracy (45 to 66 Hz)	±0.3% rdg. ±0.02% f.s.
Phase accuracy	±2° (45 Hz to 5 kHz)
Amplitude frequency characteristics	Within ±1% at 40 Hz to 5 kHz (deviation from amplitude accuracy)
Max. rated voltage to earth	300 V AC rms or less
Core diameter	ø15 mm
Cord length	3m
Dimensions / Weight	46 x 135 x 21mm (230g)
