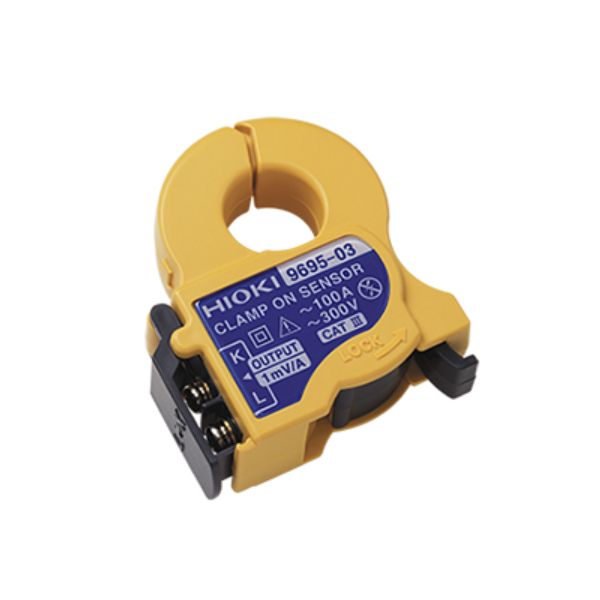

Hioki 9695-03 Clamp on Sensor

SKU

HIOKI-9695-03

สินค้าหมด

ช่วงการวัด 100 A AC
Max. measurement current: continuous 130 A
Output rate 1mV AC/A
Coductor size: ø15mm
ยี่ห้อ HIOKI, Japan

9695-03 คือแคลมป์เซนเซอร์ที่วัดไฟฟ้าได้ถึง 100 A AC ด้วย voltage output หรับการวัด load current

Specifications

Rated measurement current	100 A AC
Max. Measurement current	Continuous 130 A (45 to 66 Hz)
Output rate	1 mV AC/A
Amplitude accuracy (45 to 66 Hz)	±0.3% rdg. ±0.02% f.s.
Phase accuracy	±1° (45 Hz to 5 kHz)
Amplitude frequency characteristics	Within ±1% at 40 Hz to 5 kHz (deviation from amplitude accuracy)
Max. rated voltage to earth	300 V AC rms or less
Core diameter	ø15 mm
Cord length	3m
Dimensions / Weight	50.5 x 58 x 18.7mm (50g)
