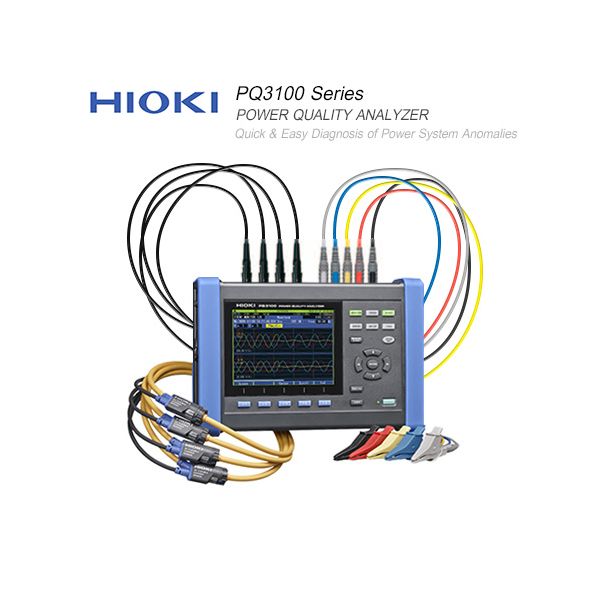

HIOKI PQ3100 Series Power Quality Analyzer เครื่องวิเคราะห์ไฟฟ้า

ชื่อสินค้า	จำนวน

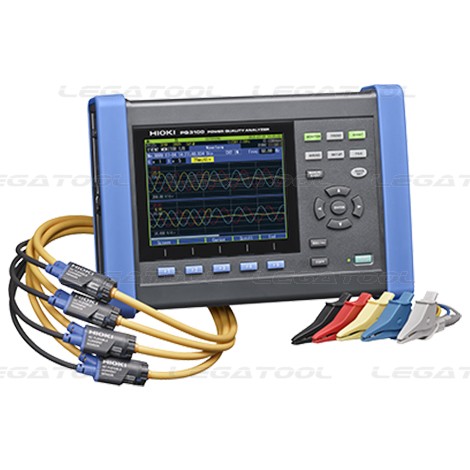

HIOKI PQ3100 Power quality analyzer เครื่องวิเคราะห์ไฟฟ้า ฿0.00 Pre-Order Item

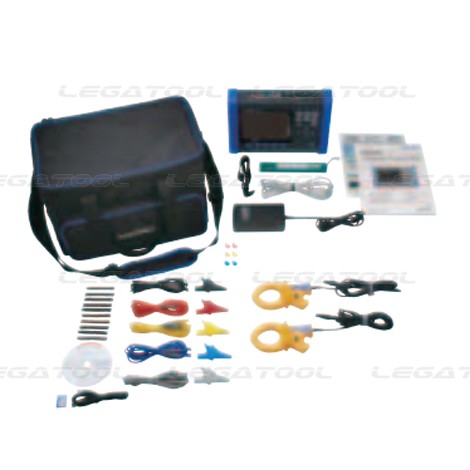

HIOKI PQ3100-91 POWER QUALITY ANALYZER KIT เครื่องวิเคราะห์ไฟฟ้า ฿0.00 Pre-Order Item

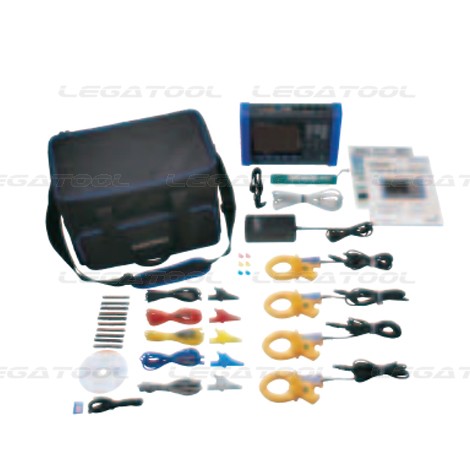

HIOKI PQ3100-92 POWER QUALITY ANALYZER KIT เครื่องวิเคราะห์ไฟฟ้า

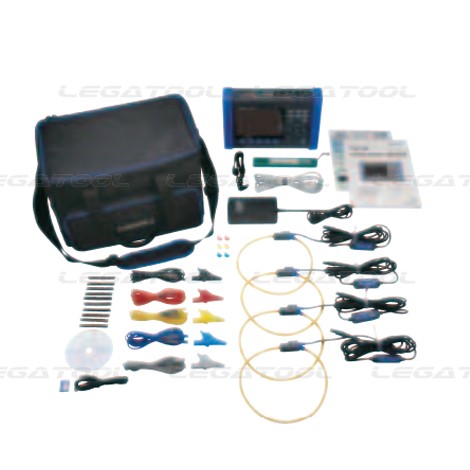

HIOKI PQ3100-94 POWER QUALITY ANALYZER KIT เครื่องวิเคราะห์ไฟฟ้า

POWER QUALITY ANALYZER เครื่องวิเคราะห์และบันทึก Power Analyzer พร้อมกันในเครื่องเดียว

PQ3100 POWER QUALITY ANALYZER KIT

Model
Model	PQ3100	PQ3100-91	PQ3100-92	PQ3100-94
Accessories Included	Instuction Manual Measurement guide Voltage cord L1000-05 Color clips AC Adapter Z1002 Strap USb cable Battery Pack Z1003 PQ One (Software, CD)	Instuction Manual Measurement guide Voltage cord L1000-05 Color clips AC Adapter Z1002 Strap USb cable Battery Pack Z1003 PQ One (Software, CD)	Instuction Manual Measurement guide Voltage cord L1000-05 Color clips AC Adapter Z1002 Strap USb cable Battery Pack Z1003 PQ One (Software, CD)	Instuction Manual Measurement guide Voltage cord L1000-05 Color clips AC Adapter Z1002 Strap USb cable Battery Pack Z1003 PQ One (Software, CD)
Kit contents	—	Power Quality Analyzer PQ3100 × 1 AC Current Sensor CT7136 × 2 Carrying Case C1009 × 1 SD Memory Card 2GB Z4001 × 1	Power Quality Analyzer PQ3100 × 1 AC Current Sensor CT7136 × 4 Carrying Case C1009 × 1 SD Memory Card 2GB Z4001 × 1	Power Quality Analyzer PQ3100 × 1 AC Flexible Current Sensor CT7045 × 4 Carrying Case C1009 × 1 SD Memory Card 2GB Z4001 × 1

SPECIFICATIONS

AC/DC			Yes
Fundamental frequency			DC/ 50 Hz/ 60 Hz
Measurement lines			Single-phase 2-wire single-phase 3-wire three-phase 3-wire three-phase 4-wire + Ch. 4
Voltage ranges			1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges			50.000 mA AC to 5.0000 kA AC 10.000 A DC to 2.0000 kA DC (depends on current sensor in use)
Power ranges			50.000 W to 6.0000 MW (determined automatically based on current range in use)
Basic accuracy			Voltage: ±0.2% of nominal voltage Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Voltage input	Number of channels		4 (U4: Not isolated)
	Maximum terminal-toground rated voltage		1000 V (measurement category III) 600 V (measurement category IV)
Current input	Number of channels		4
	Power supply for sensors		Yes
Measurement parameters	Voltage		1/2 RMS value (half-wave offset wave calculation) RMS value waveform peak Voltage DC Unbalance factor (negative-phase, zero-phase) frequency (1 wave/ 200 ms/ 10 sec.)
			Crest factor
	Current		Inrush current (half-wave) RMS value waveform peak Current DC Unbalance factor (negative-phase, zero-phase) K factor
			1/2 RMS value (half-wave offset wave calculation), crest factor
	Power		Active power Reactive power Apparent power Power factor, Displacement power factor Active energy Reactive energy
			Apparent energy, Electrical charges
	Flicker		Pst, Plt, ΔV10 (3 channels simultaneously)
	Harmonics		0th order (DC) to 50th order Voltage/ Current/ Power Phase angle (voltage/ current) Voltage/Current phase difference Total harmonic distortion ratio (voltage/ current)
	Inter-harmonics		0.5 th order to 49.5 th order, voltage/ current
	High-order harmonics		n/a
Time-series measuremen	Recording period		Max. 1 year
	Recording interval time		200 ms/600 ms/150 cycles (with 50 Hz input)/1/2/5/10/15/30 sec. to 2 h
Event measurement	Event statistical processing		Displays the number of occurrences by event per day
	Waveform acquisition:	Before event	Max. 1 sec.
		At event	200 ms
		After event	Max. 10 sec.
Event parameters	Measurable event parameters		Voltage Swell/ Dip/ Interruption/ Frequency fluctuations/ Inrush current/ THD
	Transient voltage		200 kS/s, 2.2 kV
Setting aid			Quick Set
Operating temperature and humidity			-20 to 50°C / 80%RH
IEC 61000-4-30 standard compliance			Class S
Protection Class			IP54 (EN60529) with connection cable connected, but not including cable tip
Power supply			AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)
Interfaces			SD/SDHC memory card RS-232C (for communication/ LR8410 link (Ver. up) LAN (HTTP server/ FTP (Ver. up)/ Send e-mail (Ver. up) USB 2.0 (for communication)
Dimension/ Weight			300 x 211 x 68 mm / 2.5 kg
Accessories			Standard Instruction manual ×1 Measurement guide ×1 Voltage cord L1000-05 ×1 set (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5) Color clip (for identifying clamp sensor color) ×1 set Spiral tube ×5 AC adapter Z1002 ×1 Strap ×1 USB cable (1 m 3.28 ft length) ×1 Battery pack Z1003 ×1 PQ ONE (software, CD)

รายละเอียดเพิ่มเติม

SKU	PQ3100 Series
ขนาด	300 x 211 x 68 mm
ผู้ผลิต	Hioki
บันทึกข้อมูล	ไม่
Resolution	No
Measurement Range	No
ฟังก์ชั่น	No
Power Supply	AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A)
ระดับการป้องกัน	No
Sensor Output Interface	No
Accuracy	±
