HIOKI PQ3100-94 POWER QUALITY ANALYZER KIT เครื่องวิเคราะห์ไฟฟ้า

SKU
PQ3100-94
มีสินค้า

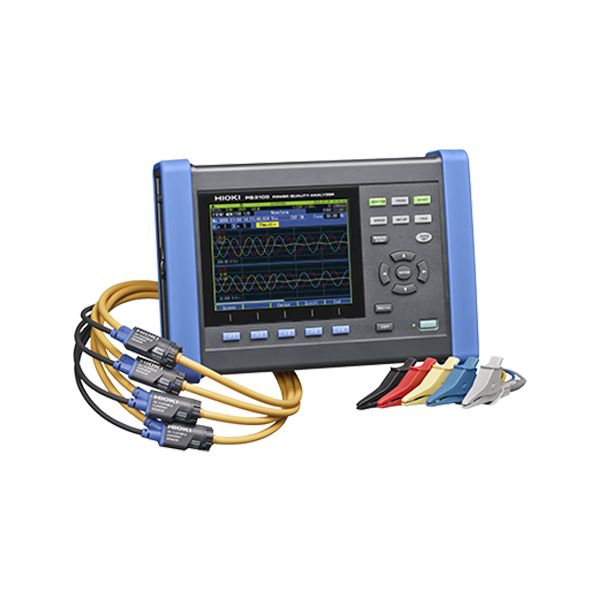

PQ3100-94 ชุด KIT เครื่องบันทึกและวิเคราะห์ Power Analyzer พร้อมกันในเครื่องเดียว
ในชุดมาพร้อม AC Flexible Current sensor (CT7045) x 4,
CARRYING CASE (C1009) x 1, SD MEMORY CARD 2GB (Z4001) x 1
3-Phase 4-Wire Power Quality Analyzer, IEC61000-4-30 Class S
หน้าจอ 6.5-inch TFT color LCD (640 × 480 dots)
มาตรฐาน 1000VAC (CATIII), 600VAC (CAT IV)
บันทึกข้อมูลด้วย SD Card
ยี่ห้อHIOKI, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

Hioki PQ3100-94 POWER QUALITY ANALYZER (Kit) เครื่องวิเคราะห์ไฟฟ้า

POWER QUALITY ANALYZER เครื่องวิเคราะห์และบันทึก Power Analyzer พร้อมกันในเครื่องเดียว

PQ3100-94 ในชุดมาพร้อม

  • AC FLEXIBLE CURRENT SENSOR (CT7045) x 4
  • CARRYING CASE (C1009) x 1
  • SD MEMORY CARD 2GB (Z4001) x 1
AC/DC Yes
Fundamental frequency DC/ 50 Hz/ 60 Hz
Measurement lines
  • Single-phase 2-wire
  • single-phase 3-wire
  • three-phase 3-wire
  • three-phase 4-wire + Ch. 4
Voltage ranges 1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges
  • 50.000 mA AC to 5.0000 kA AC
  • 10.000 A DC to 2.0000 kA DC
(depends on current sensor in use)
Power ranges 50.000 W to 6.0000 MW
(determined automatically based on current range in use)
Basic accuracy Voltage: ±0.2% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy
AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Voltage input Number of channels 4 (U4: Not isolated)
Maximum terminal-toground rated voltage 1000 V (measurement category III)
600 V (measurement category IV)
Current input Number of channels 4
Power supply for sensors Yes
Measurement parameters Voltage
  • 1/2 RMS value (half-wave offset wave calculation)
  • RMS value
  • waveform peak
  • Voltage DC
  • Unbalance factor (negative-phase, zero-phase)
  • frequency (1 wave/ 200 ms/ 10 sec.)
Crest factor
Current
  • Inrush current (half-wave)
  • RMS value
  • waveform peak
  • Current DC
  • Unbalance factor (negative-phase, zero-phase)
  • K factor
1/2 RMS value (half-wave offset wave calculation), crest factor
Power
  • Active power
  • Reactive power
  • Apparent power
  • Power factor,
  • Displacement power factor
  • Active energy
  • Reactive energy
Apparent energy, Electrical charges
Flicker Pst, Plt, ΔV10 (3 channels simultaneously)
Harmonics
  • 0th order (DC) to 50th order
  • Voltage/ Current/ Power
  • Phase angle (voltage/ current)
  • Voltage/Current phase difference
  • Total harmonic distortion ratio (voltage/ current)
Inter-harmonics 0.5 th order to 49.5 th order, voltage/ current
High-order harmonics n/a
Time-series measuremen Recording period Max. 1 year
Recording interval time 200 ms/600 ms/150 cycles (with 50 Hz input)/1/2/5/10/15/30 sec. to 2 h
Event measurement Event statistical processing Displays the number of occurrences by event per day
Waveform acquisition: Before event Max. 1 sec.
At event 200 ms
After event Max. 10 sec.
Event parameters Measurable event parameters Voltage Swell/ Dip/ Interruption/ Frequency fluctuations/ Inrush current/ THD
Transient voltage 200 kS/s, 2.2 kV
Setting aid Quick Set
Operating temperature and humidity -20 to 50°C / 80%RH
IEC 61000-4-30 standard compliance Class S
Protection Class IP54 (EN60529) with connection cable connected, but not including cable tip
Power supply AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A),
Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)
Interfaces
  • SD/SDHC memory card
  • RS-232C (for communication/ LR8410 link (Ver. up)
  • LAN (HTTP server/ FTP (Ver. up)/ Send e-mail (Ver. up)
  • USB 2.0 (for communication)
Dimension/ Weight 300 x 211 x 68 mm / 2.5 kg
Accessories Standard
  • Instruction manual ×1
  • Measurement guide ×1
  • Voltage cord L1000-05 ×1 set
    (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5)
  • Color clip (for identifying clamp sensor color) ×1 set
  • Spiral tube ×5
  • AC adapter Z1002 ×1
  • Strap ×1
  • USB cable (1 m 3.28 ft length) ×1
  • Battery pack Z1003 ×1
  • PQ ONE (software, CD)
Kit includes PQ3100-94
  • AC FLEXIBLE CURRENT SENSOR (CT7045) x 4
  • CARRYING CASE (C1009) x 1
  • SD MEMORY CARD 2GB (Z4001) x 1
SKUPQ3100-94
Weight2500.000000
ขนาด300 x 211 x 68 mm
ผู้ผลิตHioki
บันทึกข้อมูลได้
Resolution No
Measurement Range

Voltage ranges: 1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges: 50.000 mA AC to 5.0000 kA AC, 10.000 A DC to 2.0000 kA DC(depends on current sensor in use)
Power ranges: 50.000 W to 6.0000 MW (determined automatically based on current range in use

ฟังก์ชั่น
  • Simultaneously measure all parameters at once
  • Easy wiring and configuration. Reliable measurement
  • High basic performance level
  • Convenient functions
  • Clamp sensors that are easy to use anywhere
  • Rich lineup of interfaces
  • PQ One: Analyze data and create reports on a PC with a dedicated application
Power SupplyAC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A)
ระดับการป้องกันNo
Sensor Output InterfaceNo
Accuracy

Voltage: ±0.2% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy
AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy

คะแนนของคุณ

Standard

  • Instruction manual ×1
  • Measurement guide ×1
  • Voltage cord L1000-05 ×1 set
    (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5)
  • Color clip (for identifying clamp sensor color) ×1 set
  • Spiral tube ×5
  • AC adapter Z1002 ×1
  • Strap ×1
  • USB cable (1 m 3.28 ft length) ×1
  • Battery pack Z1003 ×1
  • PQ ONE (software, CD)
Kit includes PQ3100-94
  • AC FLEXIBLE CURRENT SENSOR (CT7045) x 4
  • CARRYING CASE (C1009) x 1
  • SD MEMORY CARD 2GB (Z4001) x 1
