HIOKI PQ3100 Power quality analyzer เครื่องวิเคราะห์ไฟฟ้า

SKU
PQ3100
฿0.00
Pre-Order Item
สินค้าหมด

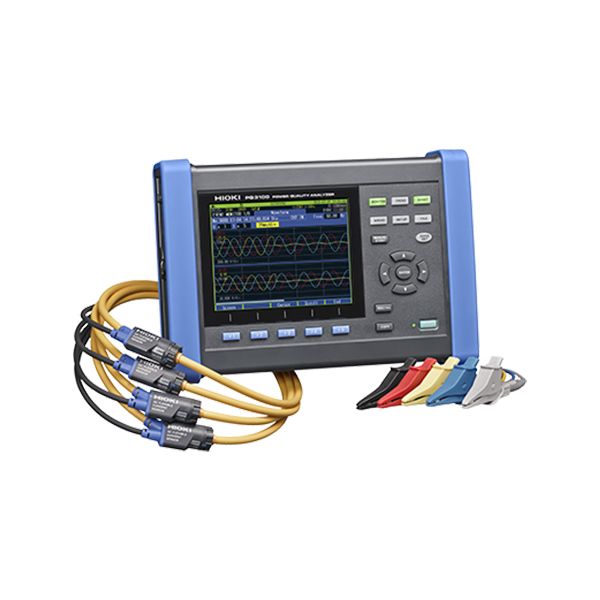

PQ3100 เครื่องบันทึกและวิเคราะห์ Power Analyzer พร้อมกันในเครื่องเดียว
3-Phase 4-Wire Power Quality Analyzer, IEC61000-4-30 Class S
หน้าจอ 6.5-inch TFT color LCD (640 × 480 dots)
มาตรฐาน 1000VAC (CATIII), 600VAC (CAT IV)
บันทึกข้อมูลด้วย SD Card
ยี่ห้อHIOKI, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

บริษัท เลกะ คอร์ปอเรชั่น จำกัด
ตัวแทนจําหน่าย HIOKI ประเทศไทย

เพิ่มสินค้าเปรียบเทียบ

Hioki PQ3100 POWER QUALITY ANALYZER เครื่องวิเคราะห์ไฟฟ้า

POWER QUALITY ANALYZER เครื่องวิเคราะห์และบันทึก Power Analyzer พร้อมกันในเครื่องเดียว

AC/DC Yes
Fundamental frequency DC/ 50 Hz/ 60 Hz
Measurement lines
  • Single-phase 2-wire
  • single-phase 3-wire
  • three-phase 3-wire
  • three-phase 4-wire + Ch. 4
Voltage ranges

1000.0 V rms or DC, Transient measurement 2.200 kV peak

Current ranges
  • 50.000 mA AC to 5.0000 kA AC
  • 10.000 A DC to 2.0000 kA DC
(depends on current sensor in use)
Power ranges 50.000 W to 6.0000 MW
(determined automatically based on current range in use)
Basic accuracy Voltage: ±0.2% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy
AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Voltage input Number of channels 4 (U4: Not isolated)
Maximum terminal-toground rated voltage 1000 V (measurement category III)
600 V (measurement category IV)
Current input Number of channels 4
Power supply for sensors Yes
Measurement parameters Voltage
  • 1/2 RMS value (half-wave offset wave calculation)
  • RMS value
  • waveform peak
  • Voltage DC
  • Unbalance factor (negative-phase, zero-phase)
  • frequency (1 wave/ 200 ms/ 10 sec.)
Crest factor
Current
  • Inrush current (half-wave)
  • RMS value
  • waveform peak
  • Current DC
  • Unbalance factor (negative-phase, zero-phase)
  • K factor
1/2 RMS value (half-wave offset wave calculation), crest factor
Power
  • Active power
  • Reactive power
  • Apparent power
  • Power factor,
  • Displacement power factor
  • Active energy
  • Reactive energy
Apparent energy, Electrical charges
Flicker Pst, Plt, ΔV10 (3 channels simultaneously)
Harmonics
  • 0th order (DC) to 50th order
  • Voltage/ Current/ Power
  • Phase angle (voltage/ current)
  • Voltage/Current phase difference
  • Total harmonic distortion ratio (voltage/ current)
Inter-harmonics 0.5 th order to 49.5 th order, voltage/ current
High-order harmonics n/a
Time-series measuremen Recording period Max. 1 year
Recording interval time 200 ms/600 ms/150 cycles (with 50 Hz input)/1/2/5/10/15/30 sec. to 2 h
Event measurement Event statistical processing Displays the number of occurrences by event per day
Waveform acquisition: Before event Max. 1 sec.
At event 200 ms
After event Max. 10 sec.
Event parameters Measurable event parameters Voltage Swell/ Dip/ Interruption/ Frequency fluctuations/ Inrush current/ THD
Transient voltage 200 kS/s, 2.2 kV
Setting aid Quick Set
Operating temperature and humidity -20 to 50°C / 80%RH
IEC 61000-4-30 standard compliance Class S
Protection Class IP54 (EN60529) with connection cable connected, but not including cable tip
Power supply AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A),
Battery pack Z1003 (Continuous use: 8 hr Charging time: Max. 5 hr 30 m with AC adapter)
Interfaces
  • SD/SDHC memory card
  • RS-232C (for communication/ LR8410 link (Ver. up)
  • LAN (HTTP server/ FTP (Ver. up)/ Send e-mail (Ver. up)
  • USB 2.0 (for communication)
Dimension/ Weight 300 x 211 x 68 mm / 2.5 kg
Accessories Standard
  • Instruction manual ×1
  • Measurement guide ×1
  • Voltage cord L1000-05 ×1 set
    (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5)
  • Color clip (for identifying clamp sensor color) ×1 set
  • Spiral tube ×5
  • AC adapter Z1002 ×1
  • Strap ×1
  • USB cable (1 m 3.28 ft length) ×1
  • Battery pack Z1003 ×1
  • PQ ONE (software, CD)
SKUPQ3100
Weight2500.000000
ขนาด300 x 211 x 68 mm
ผู้ผลิตHioki
บันทึกข้อมูลได้
Resolution No
Measurement Range

Voltage ranges: 1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges: 50.000 mA AC to 5.0000 kA AC, 10.000 A DC to 2.0000 kA DC(depends on current sensor in use)
Power ranges: 50.000 W to 6.0000 MW (determined automatically based on current range in use

ฟังก์ชั่น
  • Simultaneously measure all parameters at once
  • Easy wiring and configuration. Reliable measurement
  • High basic performance level
  • Convenient functions
  • Clamp sensors that are easy to use anywhere
  • Rich lineup of interfaces
  • PQ One: Analyze data and create reports on a PC with a dedicated application
Power SupplyAC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A)
ระดับการป้องกันNo
Sensor Output InterfaceNo
Accuracy

Voltage: ±0.2% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy
AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy

คะแนนของคุณ

Accessories Included:

  • PQ3100 (unit)
  • Instruction manual ×1
  • Measurement guide ×1
  • Voltage cord L1000-05 ×1 set
    (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5)
  • Color clip (for identifying clamp sensor color) ×1 set
  • Spiral tube ×5
  • AC adapter Z1002 ×1
  • Strap ×1
  • USB cable (1 m 3.28 ft length) ×1
  • Battery pack Z1003 ×1
  • PQ ONE (software, CD)
