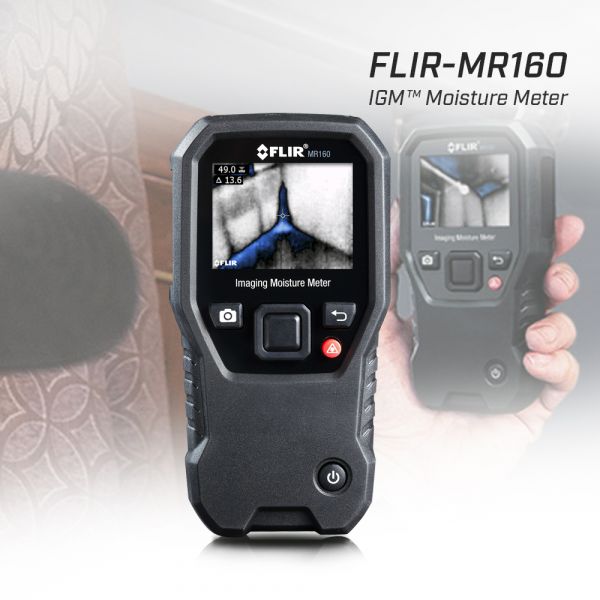

FLIR MR160 กล้องถ่ายภาพความชื้น (Imaging Moisture Meter)

SKU
MR160
฿31,100.00
มีสินค้า

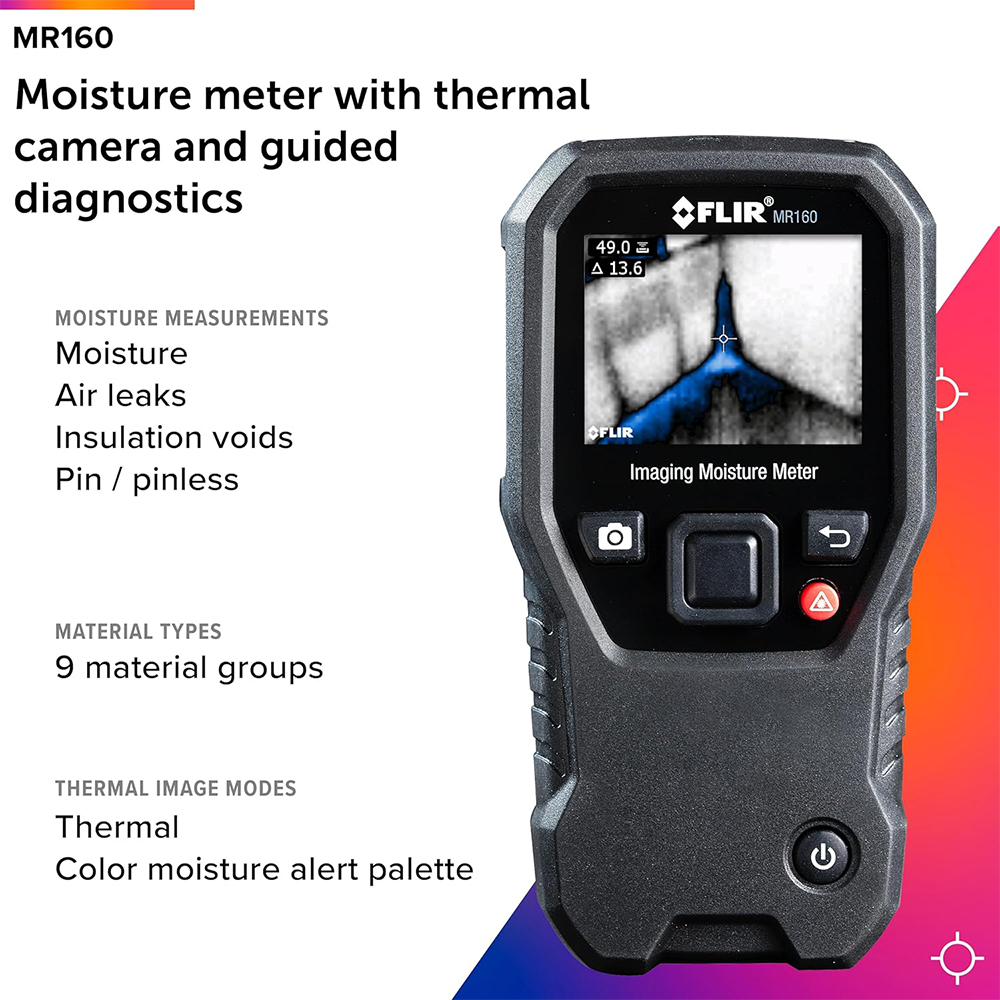

กล้องถ่ายภาพความชื้น (Imaging Moisture Meter)
ช่วงการวัด 0 to 100% WME
Field of view 51° × 38°, 4800 pixels
ฟังก์ชั่น IGM™ technology, Color Moisture Alert
ยี่ห้อ FLIR, USA

เพิ่มสินค้าเปรียบเทียบ

FLIR MR160 กล้องถ่ายภาพความชื้น (Imaging Moisture Meter)

MR160 นั้นไม่ใช่เพียงแค่กล้องถ่ายภาพความชื้น แต่ด้วยความสามารถอันมากมายที่จะตรวจจับและบ่งบอกจุดที่เกิดปัญหาให้กับคุณ ด้วยคุณสมบัติ Infrared Guided Measurement (IGM) เทคโนโลยีการบอกตำแหน่งผ่านอินฟราเรดด้วย FLIR Lepton® thermal imaging sensor ที่จะช่วยคุณในการตรวจจับอุณหภูมิและความชื้นในจุดอับ หรือในจุดที่คุณไม่สามารถมองเห็นได้ด้วยตาเปล่า ได้อย่างแม่นยำ

▼ การใช้งานกล้องถ่ายภาพความชื้น MR160

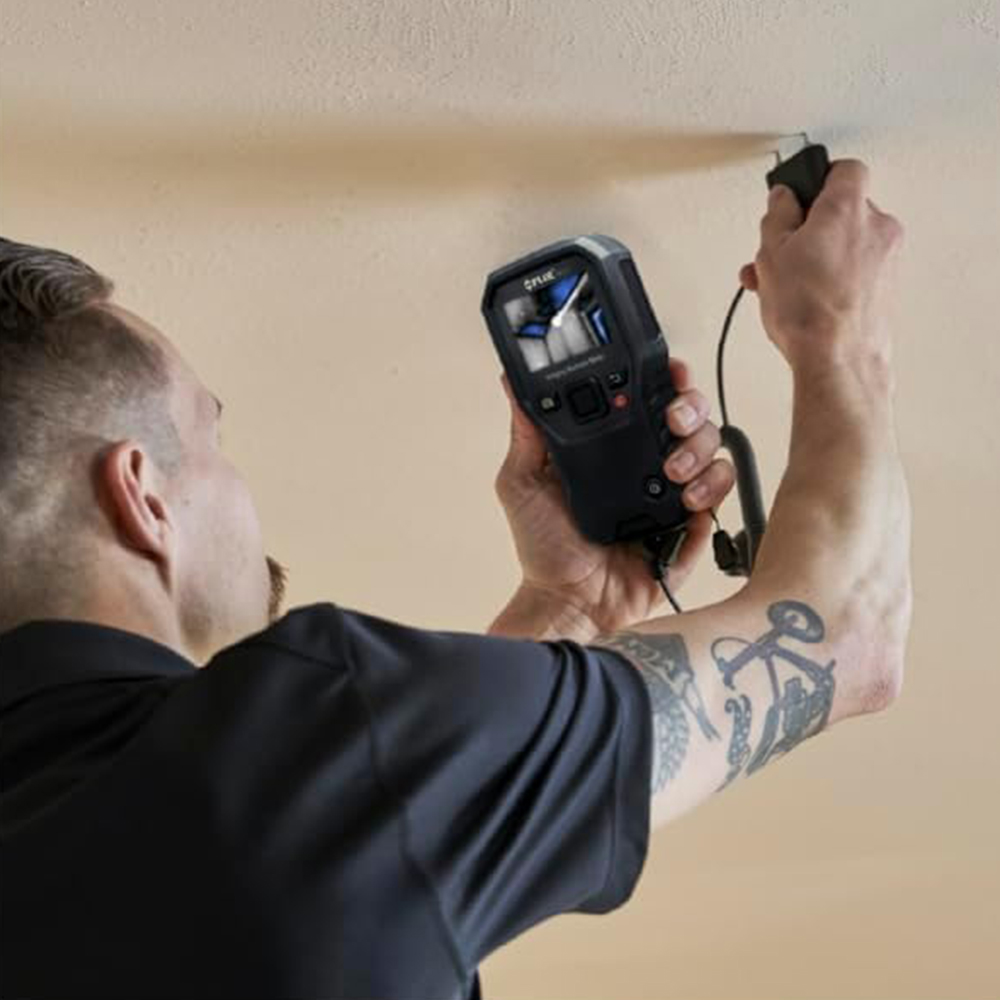

Scanning ceiling & wall joint for moisture issues Flir MR160 Diagram

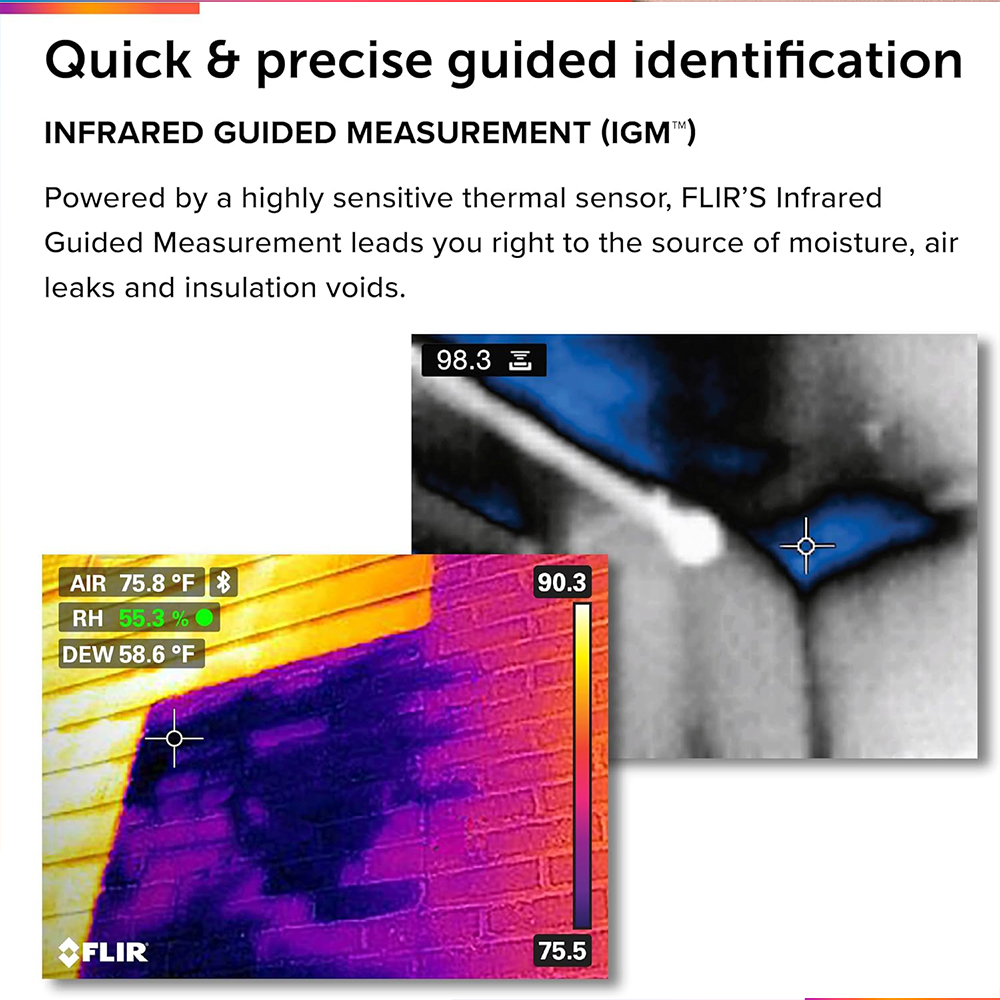

IGM technology shows you cold spots, guiding you where to measure
▲ พื้นที่สีฟ้าคือความชื้นที่กล้องสามารถจับภาพได้

▼ Thermal Imaging

Thermal Imaging Detector FLIR Lepton microbolometer
Image Calibration Automatic
Thermal Image Resolution 4800 pixels (80 × 60)
Spectral Response 8 to 14 μm
Field of View 51° × 38º
Thermal Sensitivity < 0.15ºC
Image Frame Rate 9 Hz
Image Display Color Moisture Alert
Minimum Focus Distance 10 cm

▼ Moisture Measurement

Accuracy 0 to 100% WME (± 5%)
Pin Moisture Groups 9 material groups
Pinless Moisture Range 0 to 100 relative measurement
Pinless Measurement Depth 19 mm Max.
Measurement Resolution 0.1
Response Time Pinless 100 ms
Response Time Pin Mode 750 ms

▼ General Information

Display Type QVGA (320 × 240 pixels) 2.3" 64k color TFT
Saved Image File format BMP with measurement values overlaid
Stored Image Capacity 9999 images

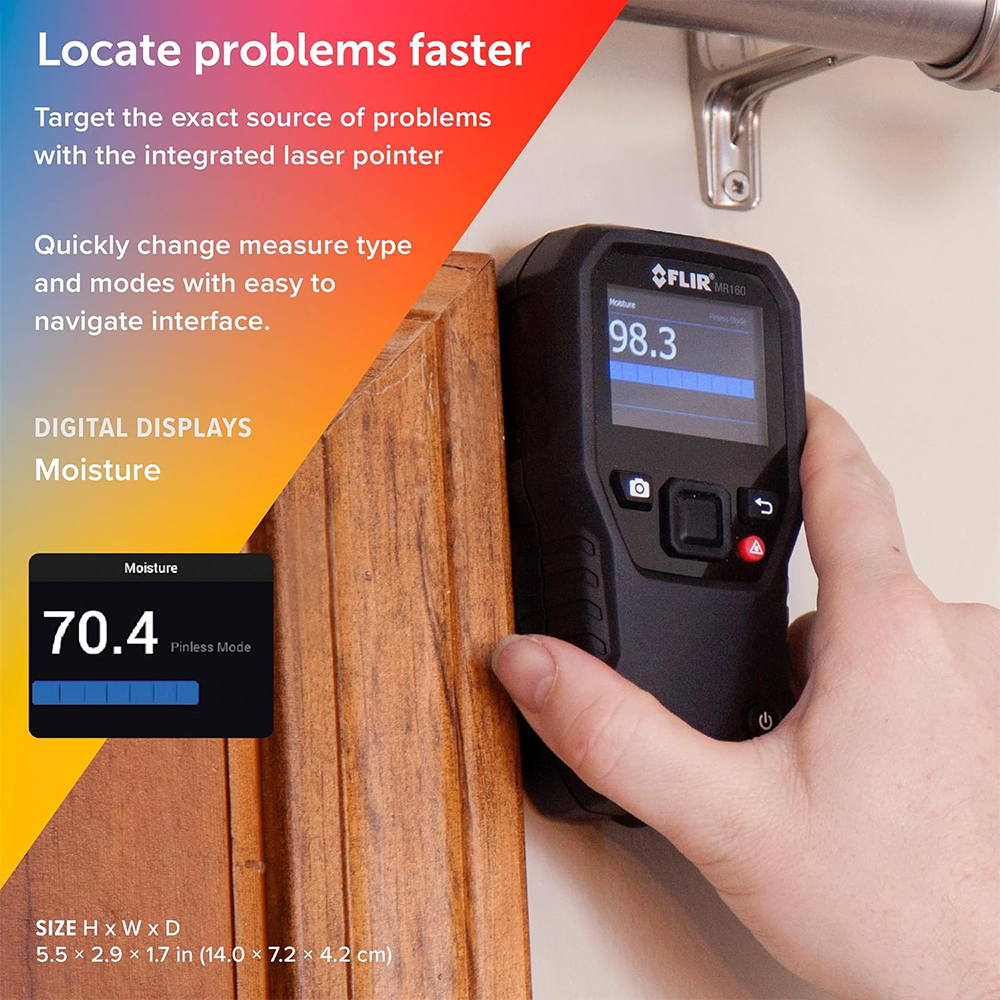

Laser Orientation Single laser pointer to center of thermal image
Certification Standards EN61326 (EMC), EN61010 (Battery, Charger), EN60825-1 Class 2 (Laser)
Drop Test 3 Meters
Power requirement Intergrated rechargable battery 3.7 V, 3000 mAh Li-ion rechargeable via micro USB
Dimensions / Weight 175 x 72 x 42 mm / 323 g
SKUMR160
Weight323.000000
ขนาด175 x 72 x 42 mm
ผู้ผลิตFLIR
บันทึกข้อมูลได้
Destructive?Non-destructive
Resolution 0.1
Measurement Range0 to 100% WME (± 5%)
ฟังก์ชั่นNo
Power Supply3.7V, 3000mAh battery, rechargeable via USB
ระดับการป้องกันIP54
Sensor Output InterfaceNo
Accuracy±5%
คะแนนของคุณ

Product's Video

ความชื้นสำหรับทาสีผนังปูน | Concrete & Mortar Moisture Meters

การวัดความชื้นคอนกรีต ความชื้นปูน มีความสำคัญเป็นอย่างมากต่อการทาสีอาคาร บ้าน ผนัง และเครื่องมือสำหรับวัดความชื้นคอนกรีตและปูนนั้น คือ Concrete & Mortar Moisture Meters หรือ Protimeter ที่มักเรียกกัน มีหลักการวัดค่าความชื้นจากอัตราการไหลผ่านของไอออนที่ผิวคอนกรีต โดยผิวคอนกรีตจะมีลักษณะเป็นรูพรุน เพื่อให้เกิดการดูดซับ หรือซึมผ่านของน้ำ

กล้องถ่ายภาพความชื้น (Imaging Moisture Meter FLIR MR 160)

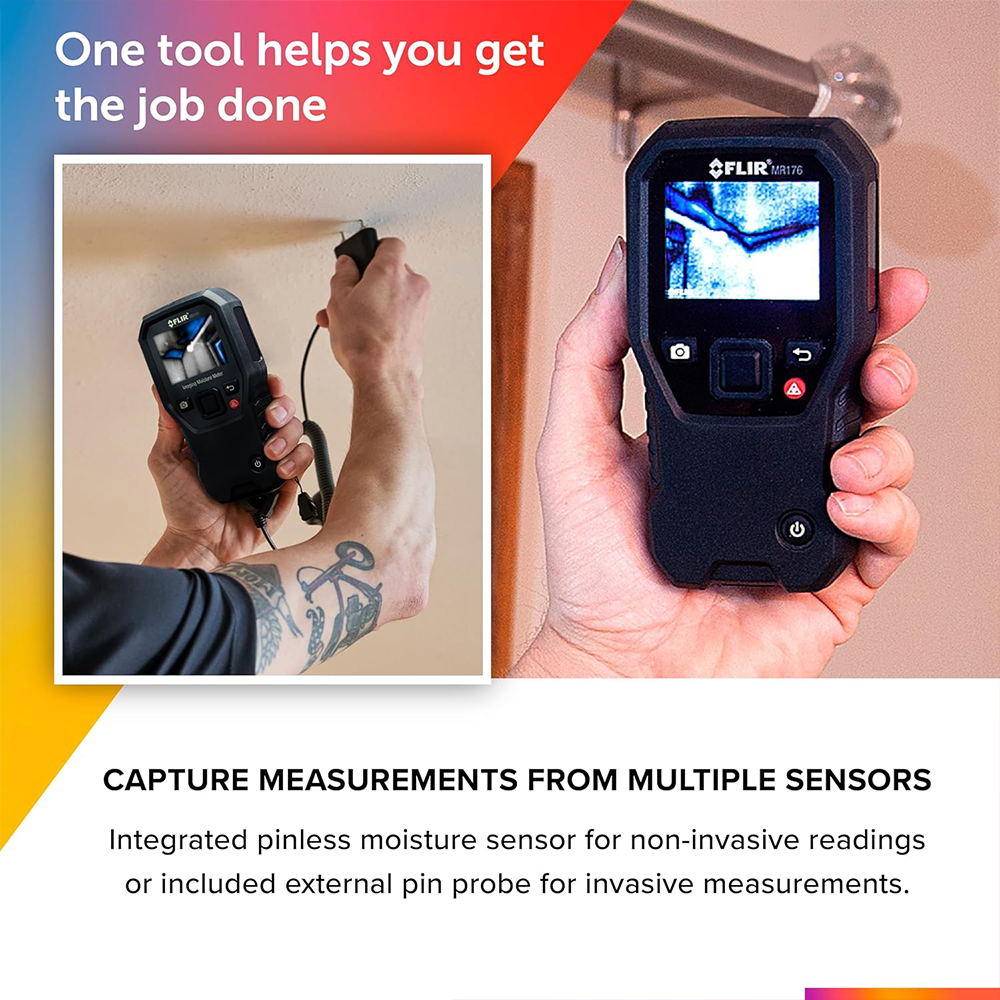

กล้องถ่ายภาพความชื้น (Imaging Moisture Meter FLIR MR 160) กล้องสแกนภาพความชื้นแบบ 2 in 1 เพื่อช่วยในการสแกนหาเป้าหมายความชื้นได้อย่างรวดเร็วและสามารถตรวจวัดและวิเคราะห์การอ่านค่าร่วมกับ Pinless Sensor โดยใช้หลักการของ Electromagnetic Wave technology ที่ไม่ทำลายพื้นผิววัสดุ และยังมี

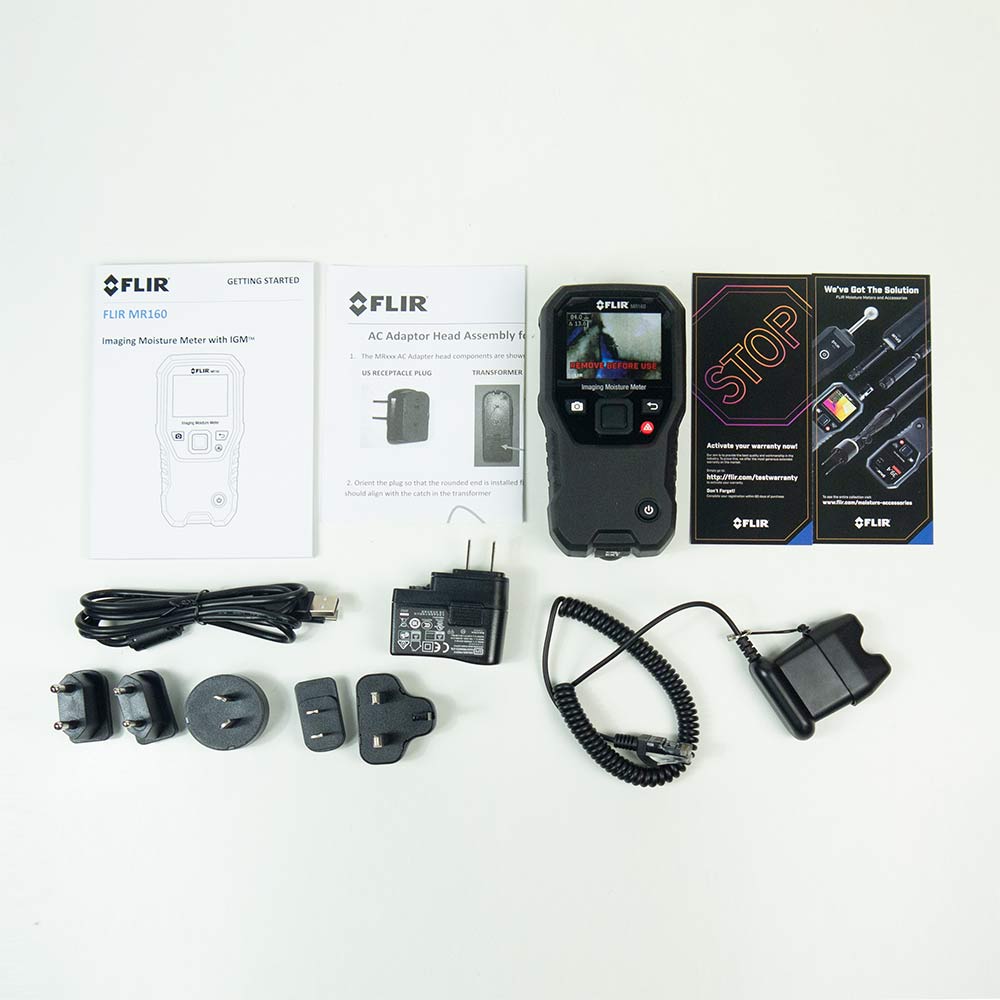

อุปกรณ์ที่มาในชุด Accessories Included:

  • MR02 Standard Pin Probe
  • Quick Start Guide,
  • International USB charger
  • USB cable

อุปกรณ์เสริม (แยกจำหน่าย)

  • MR05 Impact pin probe
  • MR10 Protective case
  • MR05-PINS1
  • MR05-PINS2 (wide)
