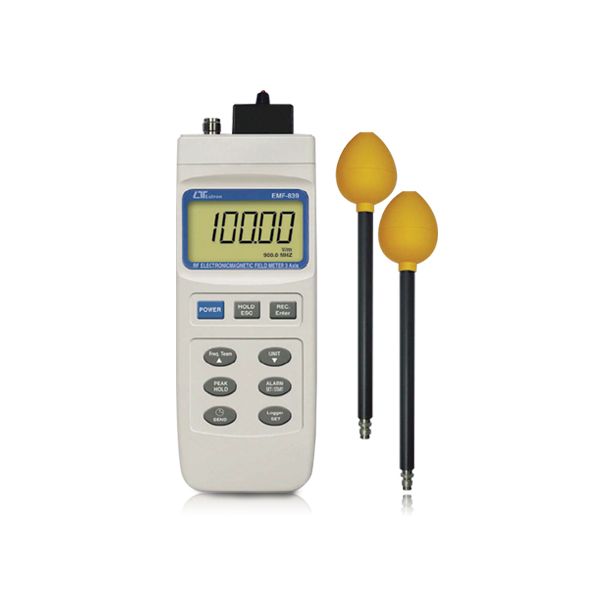

Lutron EMF-839 เครื่องวัดความแรงคลื่นวิทยุ

SKU
EMF-839
฿62,800.00
Pre-Order Item
สินค้าหมด

เครื่องตรวจจับคลื่นความถี่
ช่วงการวัดกว้างตั้งแต่ 100 KHz ถึง 3 GHz
หน่วยการวัด V/m, W/m², mW/cm²
ฟังก์ชั่น Alarm พร้อมเสียงเตือน
โพรบวัดคลื่นแม่เหล็กแบบ 3 axis
เชือมต่อด้วย RS232 PC interface
บันทึกข้อมูลได้สูงสุดถึง 16,000 ค่า
ยี่ห้อ Lutron, Taiwan

เพิ่มสินค้าเปรียบเทียบ

Lutron EMF-839 เครื่องวัดความแรงคลื่นวิทยุ

Strength Range Resolution Effective Value
0 to 200.00 V/m 0.01 V/m > 1 V/m
0 to 99.999 W/m² 0.001 W/m² > 0.03 W/m²
0 to 9.9999 mW/cm² 0.0001 mW/cm² > 0.0003 mW/cm²
Frequency Range Accuracy Test Point
100 KHz to 100 MHz (EP-04L) < 2 dB 30 V/m
50 MHz to 3 GHz (EP-03H) < 2 dB 60 V/m
  • EP-04L probe’s accuracy is specified within 400 KHz to 100 MHz only. If measurement frequency range is < 400 KHz, the reading value just for reference only.
  • EP-03H probe’s accuracy is specified within 100 MHz to 2.5 GHz only. if measurement frequency range is < 100 MHz or > 2.5 GHz, the reading value just for reference only.
Probe structure 3 Axis
Probe Type Selection EP-03H: 100 MHz to 3 GHz
EP-04L: 100 kHz to 100 MHz
Probe Input Impedance 50 Ω
Probe dimension ø70 x 290 mm
Frequency Selection Points EP-03H: 900 MHz, 1 GHz, 1.8 GHz, 2.4 GHz, 2.45 GHz, 3 GHz
EP-04L: 100 kHz, 200 kHz, 500 kHz, 1 MHz, 10 MHz, 13.56 MHz, 100 MHz
Sensor structure Semiconductor
Sampling time 1 second
Interface RS232 PC interface
Functions Data hold, Record max./ min., Auto power off, Peak hold, Alarm, Low battery indicator
Power requirement Battery DC 9V
Dimensions/ Weight 200.0 x 76.2 x 36.8 mm/ 523 g
SKUEMF-839
Weight523.000000
ขนาด200 x 76.2 x 36.8 mm
ผู้ผลิตLutron
บันทึกข้อมูลได้
Resolution

0.01 V/cm²
0.001 W/m²
0.0001 mW/cm²

Measurement Range

0 to 200.00 V/cm²
0 to 99.999 W/m²
0 to 9.9999 mW/cm²

ฟังก์ชั่นData hold, Record max./ min., Auto power off, Peak hold, Alarm, Low battery indicator
Power SupplyBattery 9V
ระดับการป้องกันNo
Sensor Output InterfaceRS-232
Accuracy±
คะแนนของคุณ

Product's Video

เครื่องวัดสนามแม่เหล็ก(Electromagnetic field Tester)

เครื่องวัดสนามแม่เหล็ก(Electromagnetic field Tester) สนามแม่เหล็ก นั้นอาจเกิดขึ้นได้จากการเคลื่อนที่ของประจุไฟฟ้า หรือในทางกลศาสตร์ควอนตัมนั้น การสปิน(การหมุนรอบตัวเอง) ของอนุภาคต่างๆ ก็ทำให้เกิดสนามแม่เหล็กเช่นกัน ซึ่งสนามแม่เหล็กที่เกิดจากการ สปิน เป็นที่มาของสนามแม่เหล็กของแม่เหล็กถาวรต่างๆ

คลื่นแม่เหล็กไฟฟ้าในชีวิตประจำวัน

EMF (Electromagnetic field) หรือ สนามแม่เหล็กไฟฟ้า ได้ถูกนำมาใช้ประโชยน์อย่างหลากหลายในอุตสาหกรรมต่างๆ เช่น คลื่นโทรศัพท์ในการสื่อสาร คลื่นโทรทัศน์เพื่อความบันเทิงในการพักผ่อน เครื่องเร้าเตอร์ที่ปล่อยสัญญาณไวไฟ(wifi)ในบ้าน คลื่นไมโครเวฟสำหรับการให้ความร้อนในการอุ่นอาหาร ด้วยความสะดวกที่เราใช้กันในชีวิตประจำนั้น หากได้รับคลื่นสนามแม่เหล็กมากเกินไป

Included Accessories :

  • EMF-839
  • EP-03H Probe
  • EP-04L Probe
  • Memory card for EP-03H
  • Memory card for EP-04L
  • DC 9V power adapter
  • Metal carrying case

Optional Accessories :

  • USB Cable (USB-01)
  • RS232 Cable (UPCB-02)
  • Data Acquisition Software (SW-U801-WIN)
  • Data Logger Software (SW-DL2005)
