Hioki ดิจิตอลมัลติมิเตอร์ Testers, Handheld Digital Multimeters (DMMs)
Digital Multimeter: Fast Selection Guide
ดิจิตอลมัลติมิเตอร์ (Digital Multimeter) สำหรับงานออนไซด์, ซ่อมบำรุงทั่วไป (Electrical work
&
General use)
|

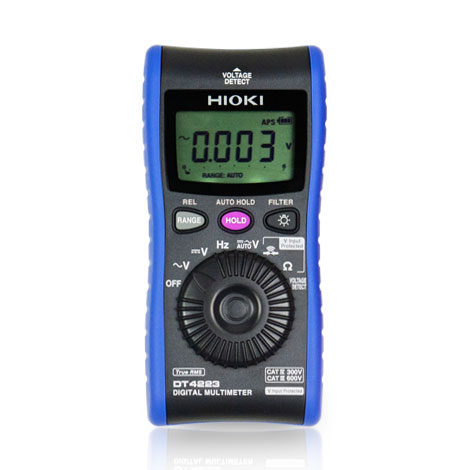

DT4223
|
DC Voltage: 600.0 mV to 600.0 V |
AC Voltage: 6.000 V to 600.0 V |
AC/DC automatic detection |
Voltage detection function |
Frequency, Resistance, Continuity |
|

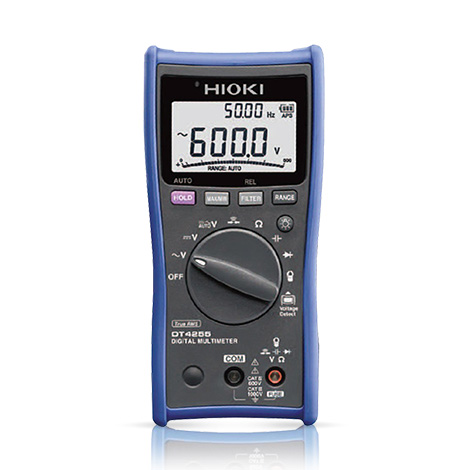

DT4255
|
DC Voltage: 600.0 mV to 1000 V |
AC Voltage: 6.000 V to 1000 V |
AC clamp-on measurement |
Voltage detection function |
Frequency, Resistance, Continuity, Diode, Capacitance, AC/DC
automatic detection |
|

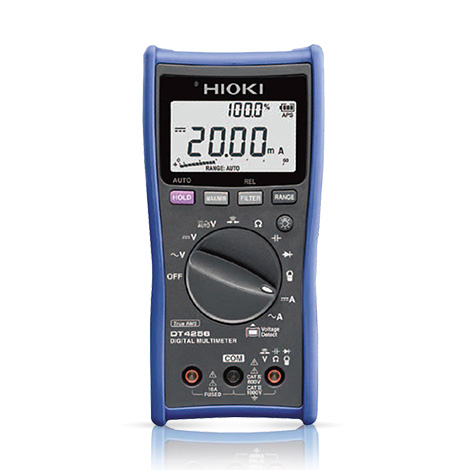

DT4256
|
DC Voltage: 600.0 mV to 1000 V |
AC Voltage: 6.000 V to 1000 V |
DC Current: 60.00 mA to 10.00 A |
AC Current: 600.0 mA to 10.00 A |
AC clamp-on measurement |
Voltage detection function |
Frequency, Resistance, Continuity, Diode, Capacitance, AC/DC
automatic detection |
|

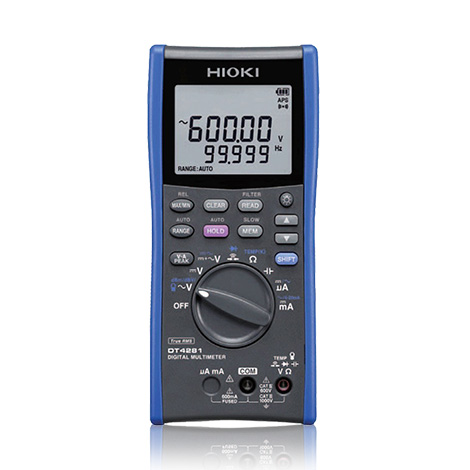

DT4281
|
DC Voltage: 60.000 mV to 1000.0 V |
AC Voltage: 60.000 mV to 1000.0 V |
DC + AC Voltage: 6.000 V to 1000.0 V |
DC Current: 600.00 μA to 600.00 mA |
AC Current: 600.00 μA to 600.00 mA |
AC clamp-on measurement |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature
|
● Supported measurement parameter
● Supported measurement parameter (with model-specific variations)
ดิจิตอลมัลติมิเตอร์ (Digital Multimeter) สำหรับงาน R&D วัด Capacitor (Laboratory & Research
use)
|

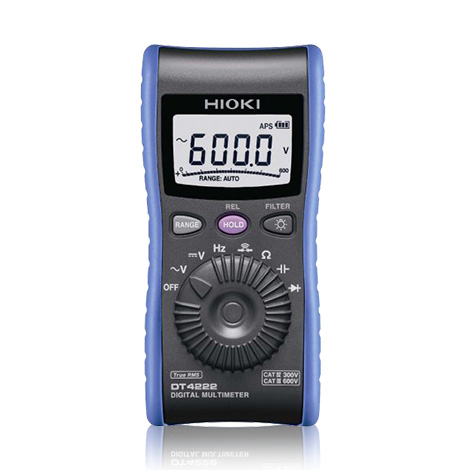

DT4222
|
DC Voltage: 600.0 mV to 600.0 V |
AC Voltage: 6.000 V to 600.0 V |
Frequency, Resistance, Continuity, Diode, Capacitance |
|

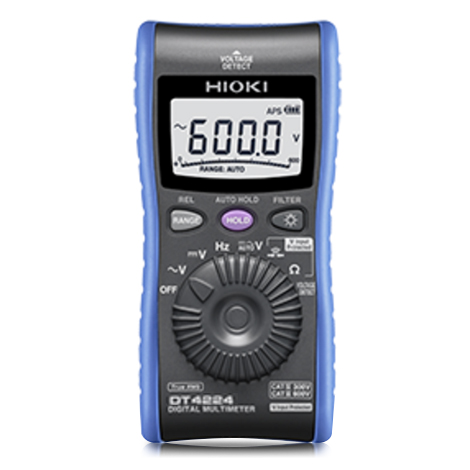

DT4224
|
DC Voltage: 600.0 mV to 600.0 V |
AC Voltage: 6.000 V to 600.0 V |
Frequency, Resistance, Continuity, Diode, Capacitance |
|
DT4252
|
DC Voltage: 600.0 mV to 1000 V |
AC Voltage: 6.000 V to 1000 V |
DC Current: 6.000 A to 10.00 A |
AC Current: 6.000 A to 10.00 A |
Frequency, Resistance, Continuity, Diode, Capacitance |
|
DT4282
|
DC Voltage: 60.000 mV to 1000.0 V |
AC Voltage: 60.000 mV to 1000.0 V |
DC + AC Voltage: 6.000 V to 1000.0 V |
DC Current: 600.00 μA to 10.000 A |
AC Current: 600.00 μA to 10.000 A |
Conductance |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature
|
● Supported measurement parameter
● Supported measurement parameter (with model-specific variations)
ดิจิตอลมัลติมิเตอร์ (Digital Multimeter) สำหรับงานวัดอุณหภูมิ, HVAC, ระบบทำความเย็น
(Air-conditioning)
|

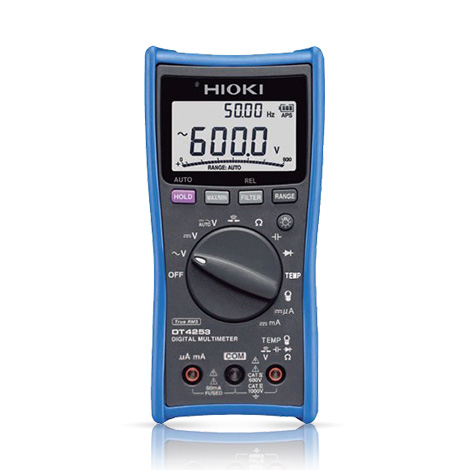

DT4253
|
DC Voltage: 600.0 mV to 1000 V |
AC Voltage: 6.000 V to 1000 V |
DC Current: 60.00 μA to 60.00 mA |
AC clamp-on measurement |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature,
AC/DC
automatic detection |
|
DT4281
|
DC Voltage: 60.000 mV to 1000.0 V |
AC Voltage: 60.000 mV to 1000.0 V |
DC + AC Voltage: 6.000 V to 1000.0 V |
DC Current: 600.00 μA to 600.00 mA |
AC Current: 600.00 μA to 600.00 mA |
AC clamp-on measurement |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature
|
|
DT4282
|
DC Voltage: 60.000 mV to 1000.0 V |
AC Voltage: 60.000 mV to 1000.0 V |
DC + AC Voltage: 6.000 V to 1000.0 V |
DC Current: 600.00 μA to 10.000 A |
AC Current: 600.00 μA to 10.000 A |
Conductance |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature
|
● Supported measurement parameter
● Supported measurement parameter (with model-specific variations)
ดิจิตอลมัลติมิเตอร์ (Digital Multimeter) แบบครอบคลุมฟังก์ชั่นการใช้งาน (Multi-function)
|
DT4256
|
DC Voltage: 600.0 mV to 1000 V |
AC Voltage: 6.000 V to 1000 V |
DC Current: 60.00 mA to 10.00 A |
AC Current: 600.0 mA to 10.00 A |
AC clamp-on measurement |
Voltage detection function |
Frequency, Resistance, Continuity, Diode, Capacitance, AC/DC
automatic detection |
|
DT4281
|
DC Voltage: 60.000 mV to 1000.0 V |
AC Voltage: 60.000 mV to 1000.0 V |
DC + AC Voltage: 6.000 V to 1000.0 V |
DC Current: 600.00 μA to 600.00 mA |
AC Current: 600.00 μA to 600.00 mA |
AC clamp-on measurement |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature
|
|

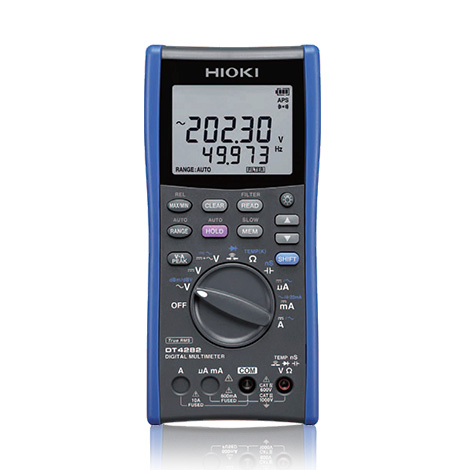

DT4282
|
DC Voltage: 60.000 mV to 1000.0 V |
AC Voltage: 60.000 mV to 1000.0 V |
DC + AC Voltage: 6.000 V to 1000.0 V |
DC Current: 600.00 μA to 10.000 A |
AC Current: 600.00 μA to 10.000 A |
Conductance |
Frequency, Resistance, Continuity, Diode, Capacitance,
Temperature
|
● Supported measurement parameter
● Supported measurement parameter (with model-specific variations)
Digital Multimeter: Compare Table
โดย เลกะคอร์ปอเรชั่น ได้นำดิจิตอลมัลติมิเตอร์ของ HIOKI มาเปรียบเทียบให้เห็นข้อแตกต่างของแต่ละรุ่น ตามตารางด้านล่าง
และลูกค้าสามารถ click ที่ชื่อรุ่นเพื่อดูรายละเอียดเพิ่มเติมของสินค้า
Model |
DT4281
|
DT4282
|
DT4252
|
DT4253
|

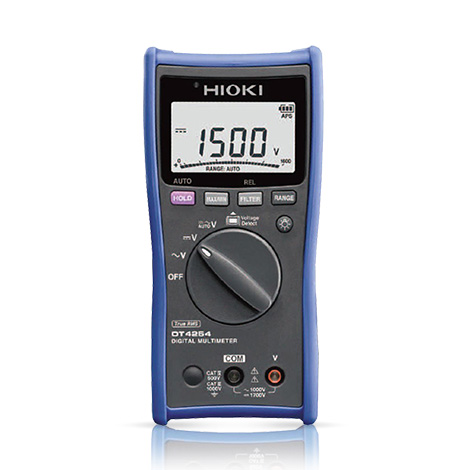

DT4254
|
DT4255
|
DT4256
|
DT4221
|
DT4222
|
DT4223
|
DT4224
|
|
|
|
|
|
|
|
|
|
|
|
|
Basic Characteristics |
True RMS |
Yes |
Yes |
Yes |
TDCV basic accuracy |
±0.025 %rdg. ±2 dgt. |
±0.3 %rdg. ±5 dgt. |
±0.3 %rdg. ±3 dgt. |
±0.5 %rdg. ±5 dgt. |
Measurement items (Typical ranges are indicated; may not reflect
maximum or minimum measurable signal) |
DC voltage |
60 mV to 1000 V |
600 mV to 1000 V |
600 mV to 1500 V*1 |
600 mV to 1000 V |
600 mV to 600 V |
AC voltage |
60 mV to 1000 V |
6 V to 1000 V |
6 V to 600 V |
DCV + ACV |
6 V to 1000 V |
N/A |
N/A |
DCA current |
600 μA to 600 mA |
600 μA to 10 A |
6 A to 10 A |
60 μA to 60 mA |
N/A |
60 mA to 10 A |
N/A |
ACA current |
600 μA to 600 mA |
600 μA to 10 A |
6 A to 10 A |
N/A |
600 mA to 10 A |
N/A |
AC clamp |
10 A to 1000 A |
N/A |
N/A |
10 A to 1000 A |
N/A |
10 A to 1000 A |
10 A to 1000 A |
N/A |
Resistance |
60 Ω to 600 MΩ |
600 Ω to 60 MΩ |
N/A |
600 Ω to 60 MΩ |
N/A |
600 Ω to 60 MΩ |
Temperature |
-40℃ to 800℃ |
N/A |
-40℃ to 400℃ |
N/A |
N/A |
Capacitance |
1 nF to 100 mF |
1 μF to 10 mF |
N/A |
1 μF to 10 mF |
N/A |
1 μF to 10 mF |
N/A |
1 μF to 10 mF |
Frequency |
99 Hz to 500 kHz |
99 Hz to 99 kHz |
99 Hz to 9.9 kHz |
Continuity check |
Yes |
Yes |
N/A |
Yes |
Yes |
Diode check |
Yes |
Yes |
N/A |
Yes |
N/A |
Yes |
N/A |
Yes |
Conductance |
N/A |
Yes |
N/A |
N/A |
Voltage detection |
N/A |
N/A |
Yes |
Yes |
N/A |
Yes |
N/A |
Additional Functions |
AUTO AC/DCV |
N/A |
N/A |
Yes |
Yes |
N/A |
Yes |
N/A |
Peak measurement |
DC/AC |
N/A |
N/A |
Low-pass filter |
Analog filter Cut-off: 630Hz |
Digital filter Pass-band: 100Hz/500Hz |
Digital filter Pass-band: 100Hz/500Hz |
Display update setting |
Yes |
N/A |
N/A |
Hold display value |
AUTO / MANUAL |
AUTO / MANUAL |
MANUAL |
AUTO / MANUAL |
Max/Min value display |
Yes |
Yes |
N/A |
Relative display |
Yes |
Yes |
Yes |
Decibel conversion |
Yes |
N/A |
N/A |
Percentage conversion display |
Yes |
N/A |
Yes |
N/A |
N/A |
DC voltage polarity check |
N/A |
N/A |
Yes |
Yes |
Data storage |
Capacity |
Max 400 data |
N/A |
N/A |
Usb communication*2 |
Yes |
Yes |
N/A |
Operating time |
Continuous operating time |
Approx. 100 hours*3 |
Approx. 130 hours |
Approx. 40 hours |
Approx. 35 hours |
Power supply |
Alkaline (LR6) battery x4 / Manganese (R6P) battery x4 |
Alkaline (LR03) battery x4 |
Alkaline (LR03) battery x1 |
Display |
Back light |
Yes |
Yes |
Yes |
Dual display |
Yes |
Yes |
N/A |
Bar graph display |
N/A |
Yes |
Yes |
Safety |
Safety standard categories |
CAT III 1000V / CAT IV 600V |
CAT III 1000V / CAT IV 600V |
CAT III 600V / CAT IV 300V |
Mis-insertion prevention shutters |
Yes |
N/A |
N/A |
Circuit breaker false trip prevention |
N/A |
N/A |
N/A |
Yes |
